Page 95 of 121
Advanced> MAC> Static Addresses
Any system, whose MAC address and the port number are listed in this screen, will not be purged from the system’s forwarding table by the aging
process.
Add a new entry
o
Enter the MAC address and port in the appropriate boxes
o
Click Add
Remove an exist entry
o Highlight that entry in the table, by clicking on the MAC address
o Choose Remove

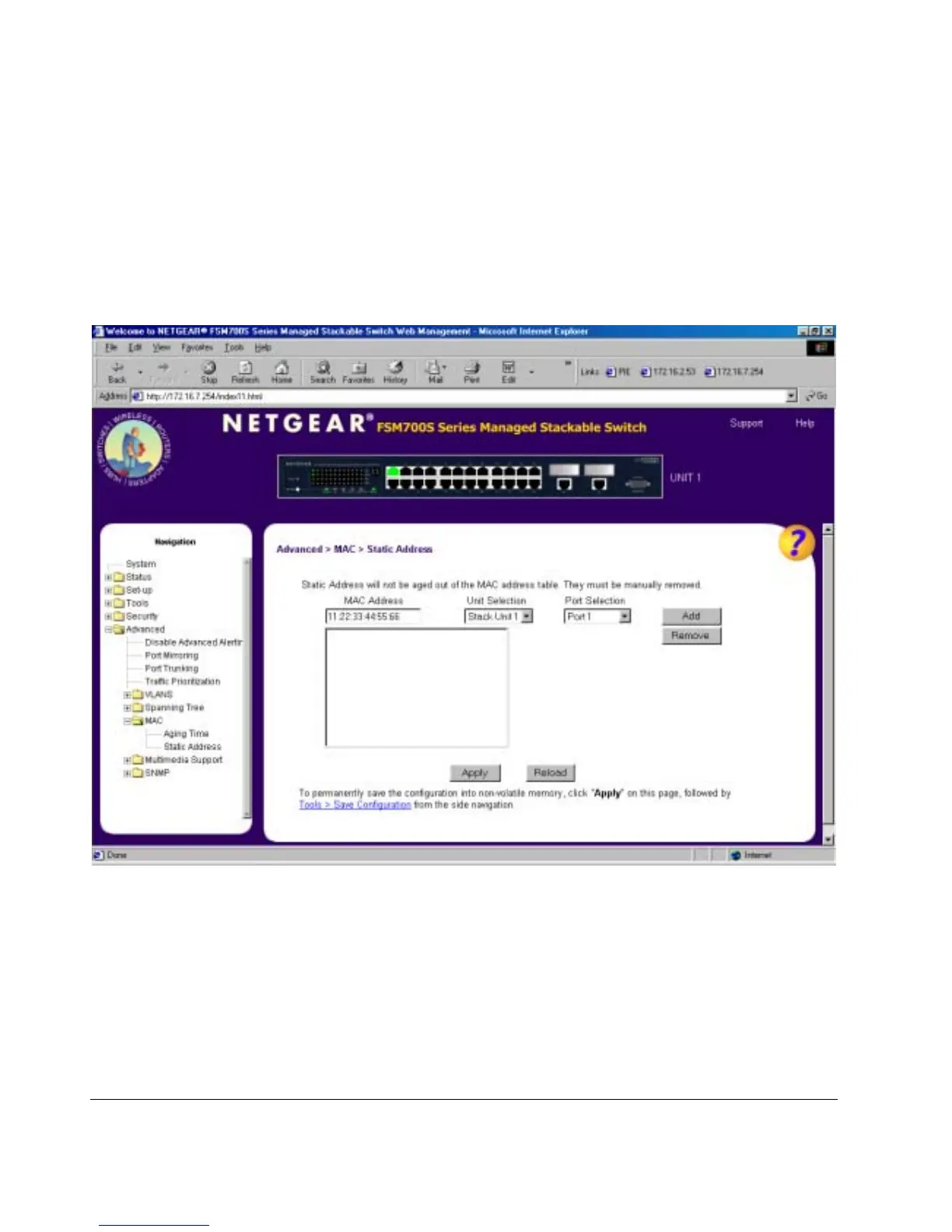

Figure 7-26: MAC > Static Addresses
