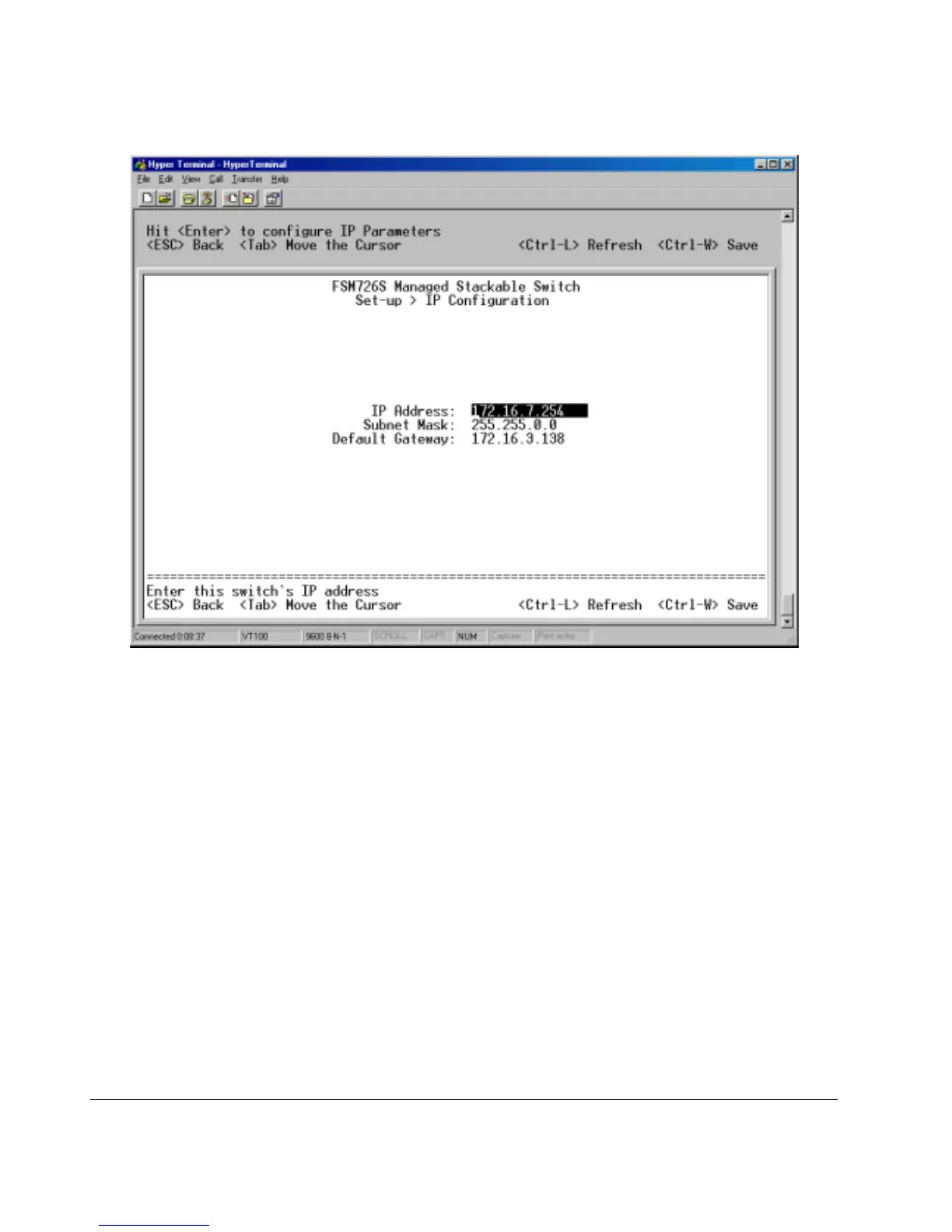

Figure 4-7: IP Configuration
7. On the IP Configuration page, type in the desired IP Address for this switch, followed by the ‘Enter’ key.
Note: this switch is not DHCP client capable. You must assign a static IP address to the master switch.
8. Now type in the desired Network Mask, followed by the ‘Enter’ key.
9. Now type in the desired Default Gateway, followed by the ‘Enter’ key.
10. Use Ctrl-W to save these new settings. Hit the ‘Y’ key or ‘Enter’ to confirm saving the new settings to NVRAM.
11. Now hit the ‘ESC’ key twice to return to the Main Menu.
12. On the Main Menu page, hit the ‘D’ key to select the Tools page.
