Page 75 of 121
Status > Error Statistics
The Error Statistics Graph allows you to chart one type of statistic for any combination of ports. In the case of the Error Statistics Graph, the chart
will present data across time so that fluctuations in time can be easily seen. All charts have a maximum ceiling of more than 2.1 billion
(2,147,483,647). You can see the value of each bar or line in the chart by clicking on the bar. The following will outline the settings for each type of
graph.
o
Statistics The type of system errors to be monitored
o
Refresh Rate The time interval between automatic refreshes (5,10,15, 30 seconds)
o
Port Selection The port for data to be monitored
When all of the variables are set, click Draw.

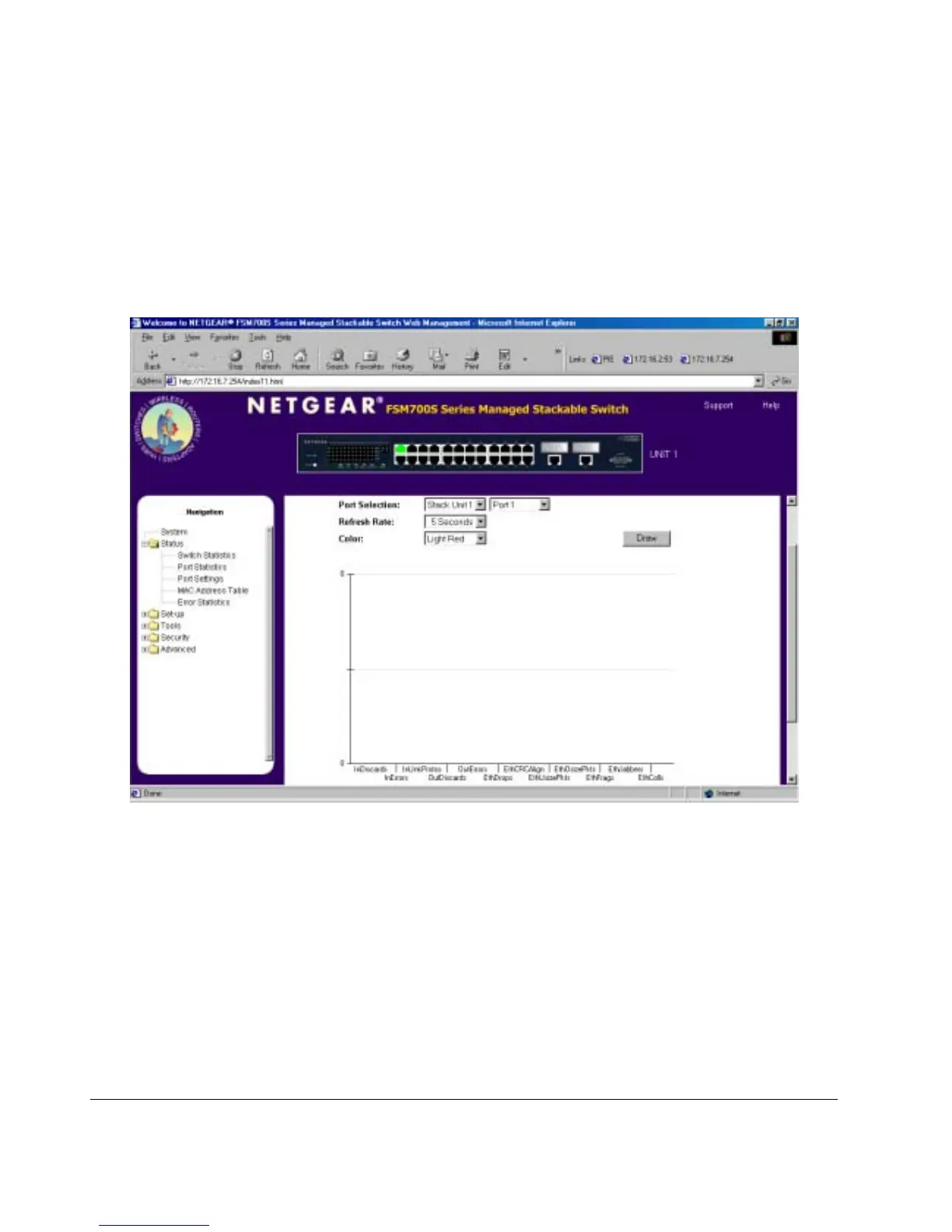

Figure 7-8: Statistics: Error Statistics
