Advanced> MAC
There are two kind of configuration in advanced MAC setup:
o Aging Time
o Static Address
Advanced> MAC> Address Aging
Aging Time is a variable that must be configured. Its purpose is to determine the amount of time an entry is held in the forwarding tables while no
activity occurs from that address. Entries should be removed to update the table for MAC addresses that have moved or are turned off.
The default value is set to 300 seconds (5 minutes).
o The administrator may change this value to any value between 10 and 1,000,000 seconds.
o After changing the value, click ‘Apply’

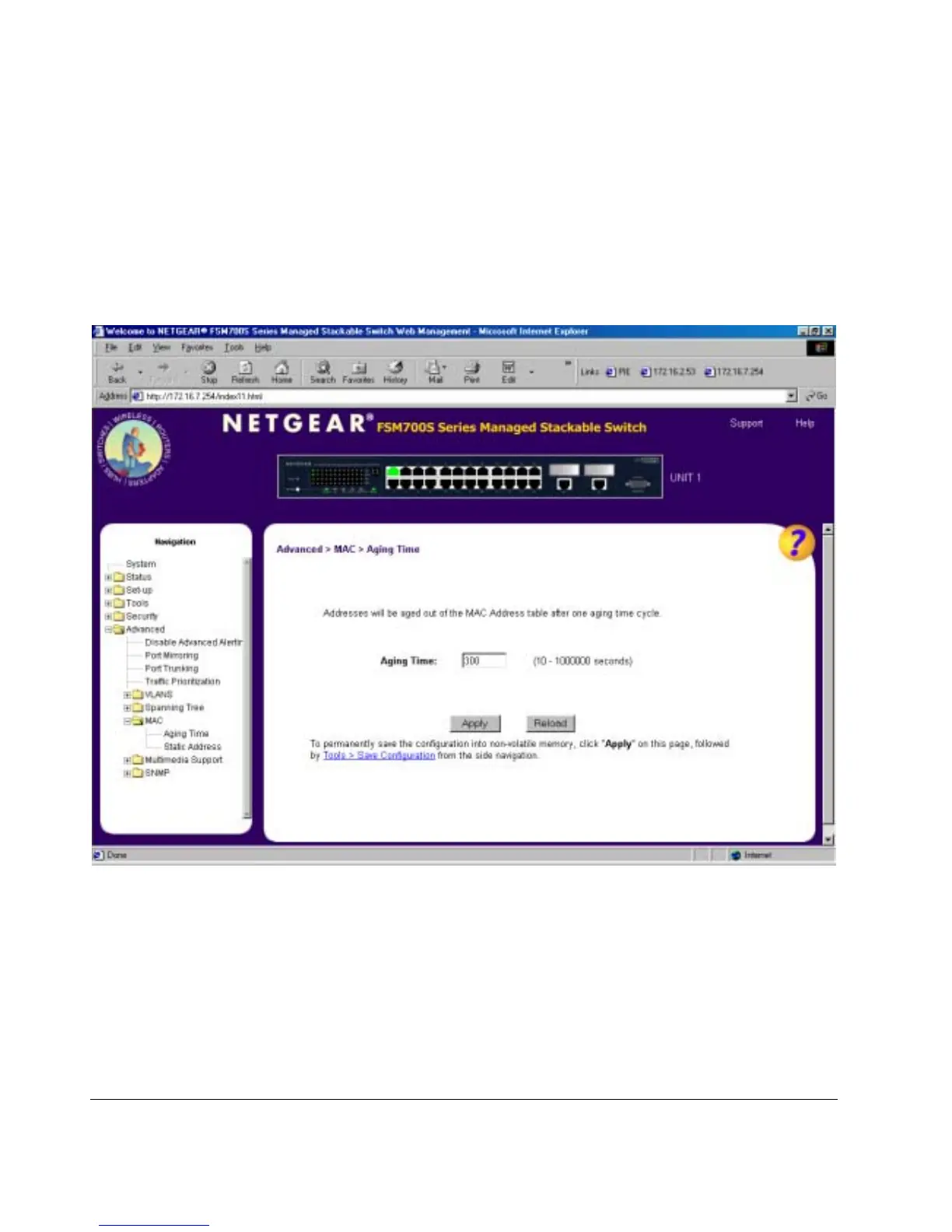

Figure 7-25: MAC > Address Aging
