NETGEAR WNDAP360 User Manual

Wireless Configuration and Security
54
ProSafe Dual Band Wireless-N Access Point WNDAP360

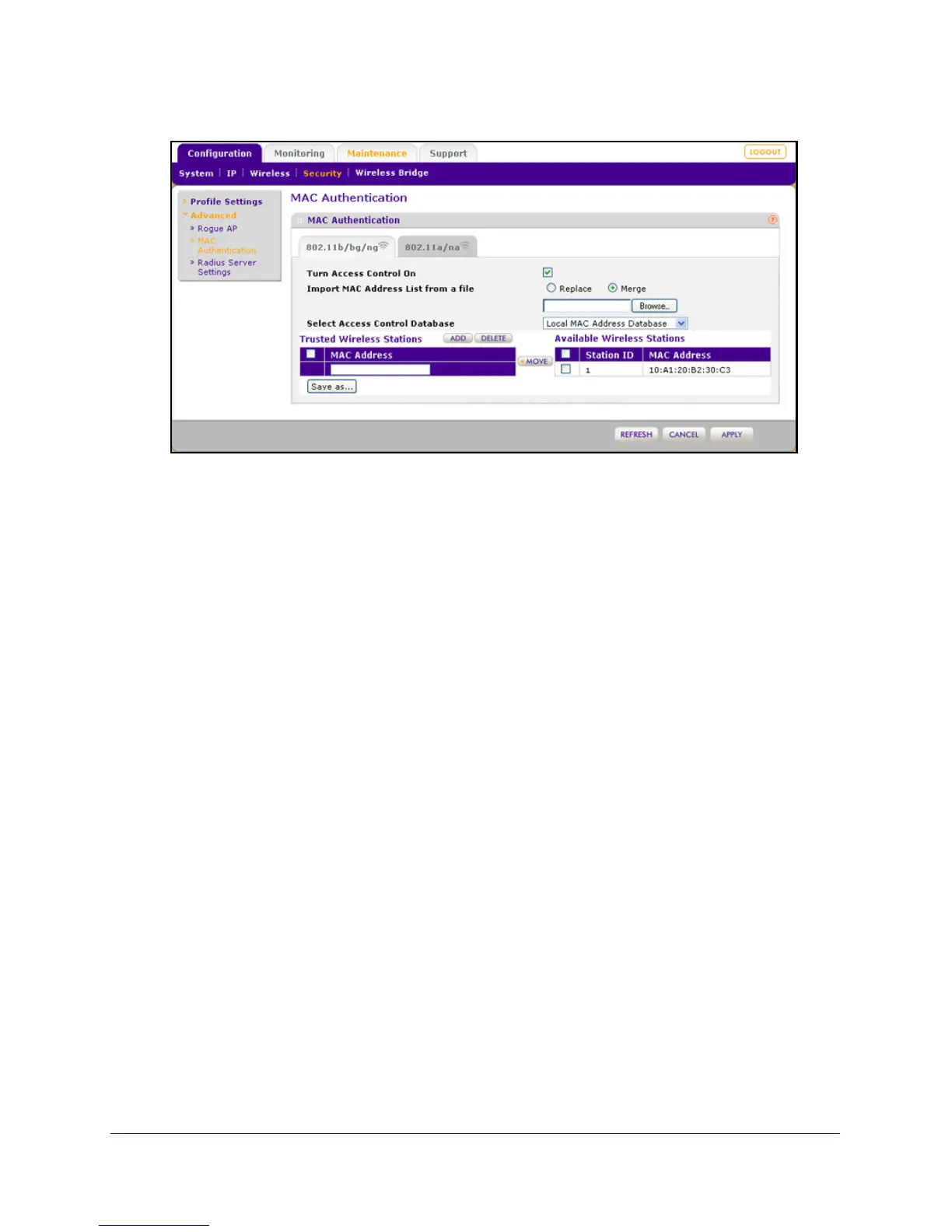

Figure 28.
2. Optionally: To display the MAC Authentication screen for the 802.11a/na modes, click the
802.11a/na tab.
3. Select the T
urn Access Control On check box to enable the access control feature.
4. From
the Select Access Control Database drop-down list, select one of the following
database options:
• Loc
al MAC Address Database. The wireless access point uses the local MAC
address database for access control. This is the default setting.
• Remote
MAC Address Database. The wireless access point uses the MAC address
database on an external RADIUS server on the LAN for access control. If you select
this database, you first need to configure the RADIUS server settings (see Configure
RADIUS Server Settings o
n page 51).
5. Click Refresh to ref
resh the Available Wireless Stations table. The wireless access point
places the MAC addresses of the attached wireless stations in this table.
6. Populate
the Trusted Wireless Stations table by one of the following methods:
• Select MAC addresse
s from the Available Wireless Stations table:
a. S
elect individual check boxes for MAC addresses, or select all MAC addresses by
selecting the check box in the heading.
b. Click Move to tran
sfer the MAC addresses from the Available Wireless Stations
table to the Trusted Wireless Stations table.
• Ente
r MAC addresses manually:
a. E
nter a MAC address directly in the Trusted Wireless Stations table.
b. Click Add.
To delete a MAC address from the Trusted Wireless Stations table, select individual check
boxe
s for MAC addresses, or select all MAC addresses by selecting the check box in the
heading, and then click Delete.
7. Click Apply to save
your settings.

NETGEAR WNDAP360 Specifications

General

VLAN support	Yes
Frequency band	2.4 - 5 GHz
Number of users	50 user(s)
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Weight (imperial)	1.93 lbs
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE802.1x
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, EAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, TTLS, WEP, WPA, WPA2
Power requirements	12 VDC, 1A
Power consumption (typical)	10.51 W
Minimum system requirements	Internet Explorer 6.0, Mozilla Firefox 1.5
Compatible operating systems	- Windows Vista, XP, 2000, 98, Me - Mac OS - UNIX - Linux
Internal	No
LED indicators	LAN
Cable lock slot type	Kensington

Weight and Dimensions

Height	54.76 mm
Weight	878 g
Dimensions (WxDxH)	253.75 x 253.76 x 54.76 mm
