NETGEAR WNDAP360 User Manual

Advanced Configuration
84
ProSafe Dual Band Wireless-N Access Point WNDAP360
Configure Advanced Wireless Settings
You use the advanced Wireless Settings screen to configure and enable various WLAN
settings for 802.11b, 802.11bg, or 802.11ng wireless mode. The active wireless mode is
indicated on screen. (For information about how to change the wireless mode, see Configure
Basic Wireless Settings on p
age 23.)
The default WLAN settings normally work well. Ho
wever, you can use these settings to
fine-tune the overall performance of your wireless access point for your environment.
 To configure advanced wireless settings:
1. Select Configuration
> Wireless > Advanced > Wireless Settings. The advanced
Wireless Settings screen displays. (The following figure shows the 11ng settings—see
the wireless icon that is displayed next to ng.)

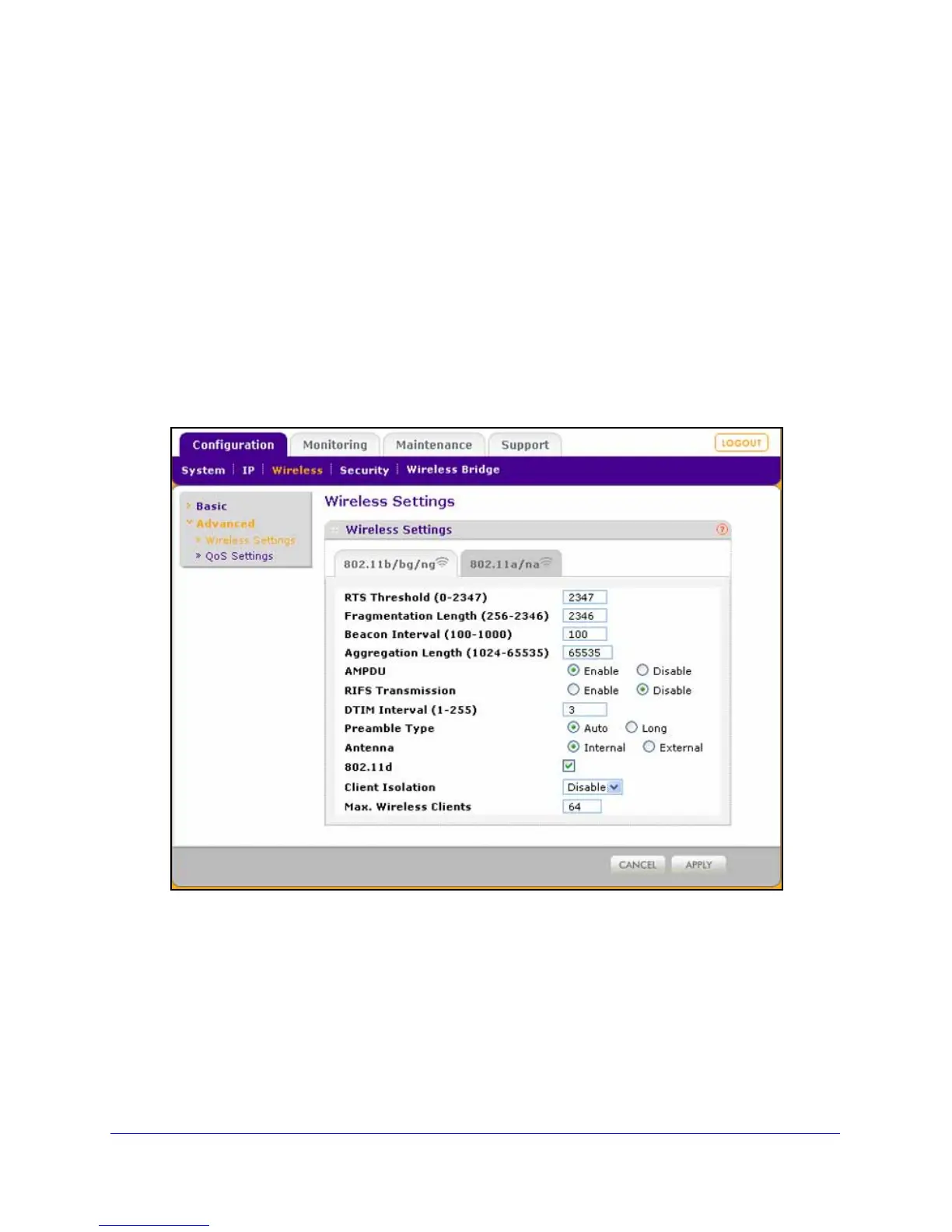

Figure 51.
2. Optionally: To configure advanced wireless settings for the 802.11a/na modes, click the
802.11a/na tab.

NETGEAR WNDAP360 Specifications

General

VLAN support	Yes
Frequency band	2.4 - 5 GHz
Number of users	50 user(s)
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Weight (imperial)	1.93 lbs
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE802.1x
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, EAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, TTLS, WEP, WPA, WPA2
Power requirements	12 VDC, 1A
Power consumption (typical)	10.51 W
Minimum system requirements	Internet Explorer 6.0, Mozilla Firefox 1.5
Compatible operating systems	- Windows Vista, XP, 2000, 98, Me - Mac OS - UNIX - Linux
Internal	No
LED indicators	LAN
Cable lock slot type	Kensington

Weight and Dimensions

Height	54.76 mm
Weight	878 g
Dimensions (WxDxH)	253.75 x 253.76 x 54.76 mm
