NETGEAR WNDAP360 User Manual

Management
64
ProSafe Dual Band Wireless-N Access Point WNDAP360

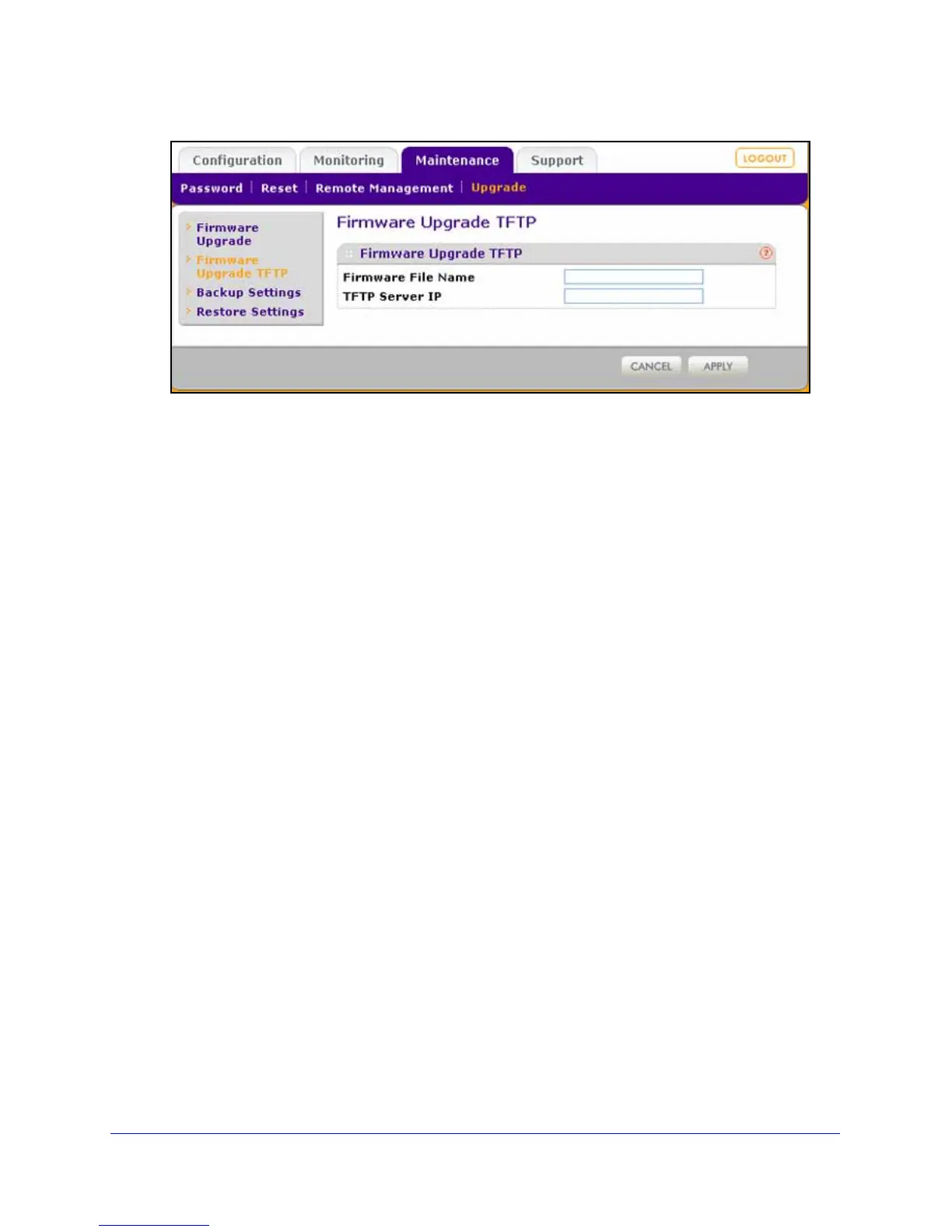

Figure 35.
5. Specify the following information:
• Firmware File
Name. The name of the unzipped software file.
• TFT
P Server IP. The IP address of your TFTP server.
6. Click Apply
to initiate the upgrade process.
During the upgrade process, the wireless access point automatically restarts. The
upgra
de process typically takes several minutes. When the Test LED turns off, wait a few
more seconds before doing anything with the wireless access point.
7. V
erify that the new software file has been installed by selecting Monitoring > System. The
System screen displays (see Figure 42 on p
age 70). The firmware version is shown in the
Access Point Information section of the screen.
Manage the Configuration File or Reset to Factory
Defaults
The wireless access point settings are stored in the configuration file. You can save this file
(back it up) to a computer, restore it from a computer, or reset it to factory default settings.
Save the Configuration
 To save your settings:
1. Select M
aintenance > Upgrade > Backup Settings. The Backup Settings screen
displays (see the following figure).
2. Click Backup. Y
our browser extracts the configuration file (the file name is config) from the
wireless access point and prompts you for a location on your computer to store the file.
3. Fo
llow the instructions of your browser to save the file.

NETGEAR WNDAP360 Specifications

General

VLAN support	Yes
Frequency band	2.4 - 5 GHz
Number of users	50 user(s)
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Weight (imperial)	1.93 lbs
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE802.1x
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, EAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, TTLS, WEP, WPA, WPA2
Power requirements	12 VDC, 1A
Power consumption (typical)	10.51 W
Minimum system requirements	Internet Explorer 6.0, Mozilla Firefox 1.5
Compatible operating systems	- Windows Vista, XP, 2000, 98, Me - Mac OS - UNIX - Linux
Internal	No
LED indicators	LAN
Cable lock slot type	Kensington

Weight and Dimensions

Height	54.76 mm
Weight	878 g
Dimensions (WxDxH)	253.75 x 253.76 x 54.76 mm
