NETGEAR WNDAP360 User Manual

Management
63
ProSafe Dual Band Wireless-N Access Point WNDAP360

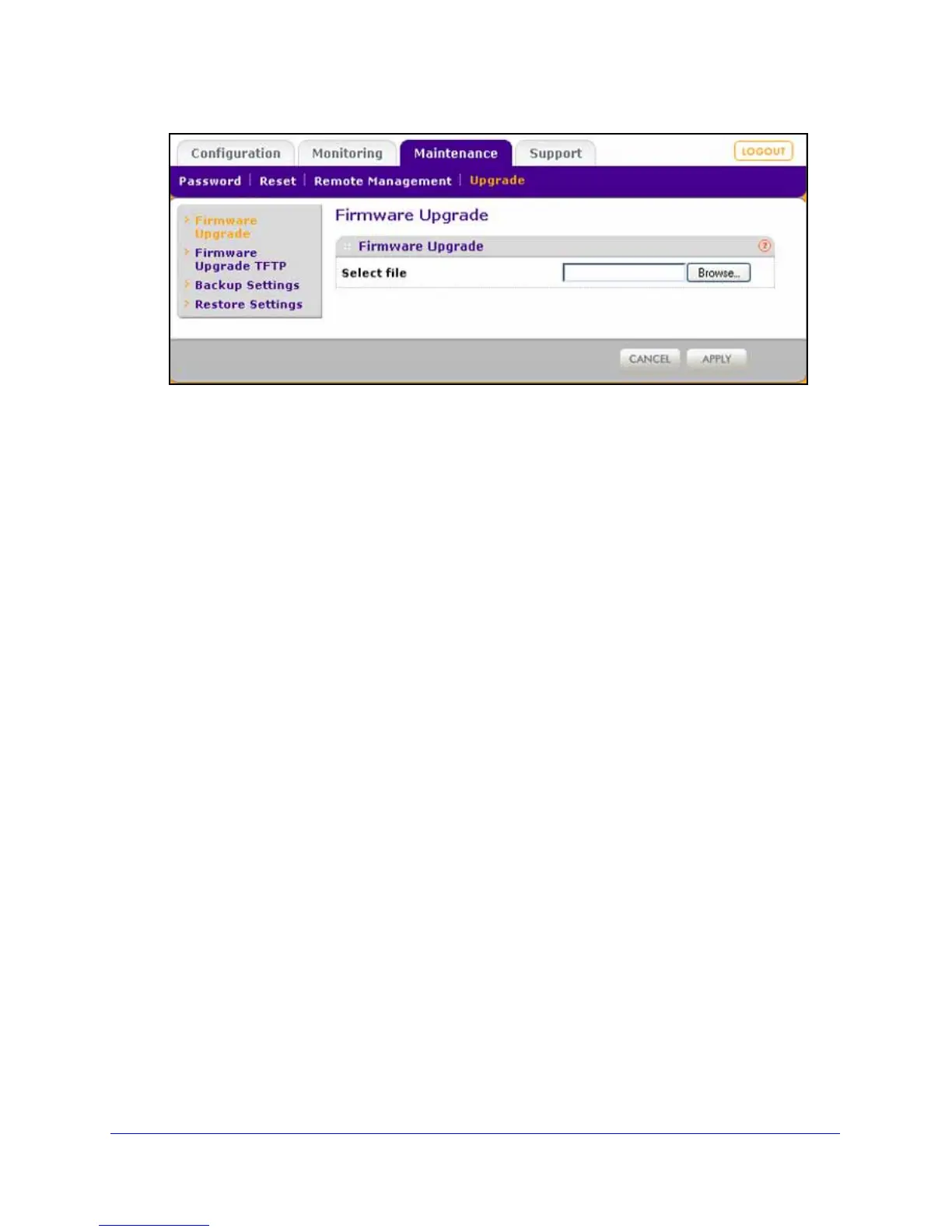

Figure 34.
5. Click Browse and locate the image (.zip) upgrade file.
6. Click App
ly to initiate the upgrade process.
During the upgrade process, the wireless access point auto
matically restarts. The
upgrade process typically takes several minutes. When the Test LED turns off, wait a few
more seconds before doing anything with the wireless access point.
7. V
erify that the new software file has been installed by selecting Monitoring > System. The
System screen displays (see Figure 42 on p
age 70). The firmware version is shown in the
Access Point Information section of the screen.
TFTP Server Upgrade Procedure
To use this method, you need to have a TFTP server set up.
 To use a TFTP server to upgrade the wireless access point firmware:
1. Download th
e new software file from the NETGEAR website and save it to your hard
disk.
2. Place the sof
tware file in your TFTP server location. (You do not need to unzip the file.)
3. If available,
read the release notes before upgrading the software.
4. Select Main
tenance > Upgrade > Firmware Upgrade TFTP. The Firmware Upgrade TFTP
screen displays:

NETGEAR WNDAP360 Specifications

General

VLAN support	Yes
Frequency band	2.4 - 5 GHz
Number of users	50 user(s)
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Weight (imperial)	1.93 lbs
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE802.1x
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, EAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, TTLS, WEP, WPA, WPA2
Power requirements	12 VDC, 1A
Power consumption (typical)	10.51 W
Minimum system requirements	Internet Explorer 6.0, Mozilla Firefox 1.5
Compatible operating systems	- Windows Vista, XP, 2000, 98, Me - Mac OS - UNIX - Linux
Internal	No
LED indicators	LAN
Cable lock slot type	Kensington

Weight and Dimensions

Height	54.76 mm
Weight	878 g
Dimensions (WxDxH)	253.75 x 253.76 x 54.76 mm
