NETGEAR WNDAP360 User Manual

Management
75
ProSafe Dual Band Wireless-N Access Point WNDAP360
View the Activity Log
You can view the wireless access point’s activity log onscreen and save the logs.
 To display the activity log and save it:

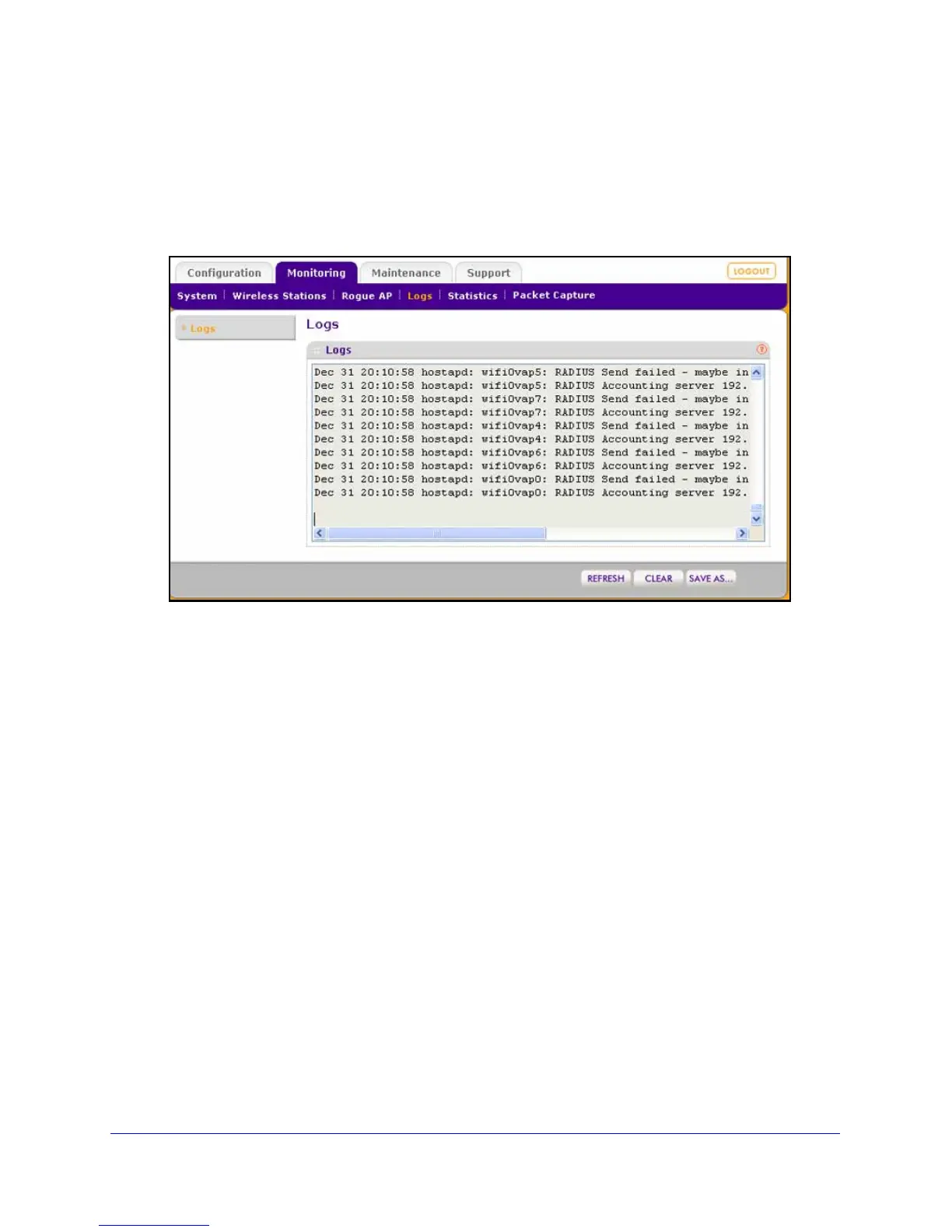

1. Select Monitoring
> Logs. The Logs screen displays:
Figure 45.
2. Click Save As to save the log contents to a file on your computer or to a disk drive.
To update the display on screen, click Refresh; to clear
the log content, click Clear.
Traffic Statistics
The Statistics screen displays information for both wired (LAN) and wireless (WLAN) network
traffic.
 To display the Statistics screen:
Select Monit
oring > Statistics.

NETGEAR WNDAP360 Specifications

General

VLAN support	Yes
Frequency band	2.4 - 5 GHz
Number of users	50 user(s)
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Weight (imperial)	1.93 lbs
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE802.1x
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, EAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, TTLS, WEP, WPA, WPA2
Power requirements	12 VDC, 1A
Power consumption (typical)	10.51 W
Minimum system requirements	Internet Explorer 6.0, Mozilla Firefox 1.5
Compatible operating systems	- Windows Vista, XP, 2000, 98, Me - Mac OS - UNIX - Linux
Internal	No
LED indicators	LAN
Cable lock slot type	Kensington

Weight and Dimensions

Height	54.76 mm
Weight	878 g
Dimensions (WxDxH)	253.75 x 253.76 x 54.76 mm
