NETGEAR WNDAP360 User Manual

Management
60
ProSafe Dual Band Wireless-N Access Point WNDAP360
Secure Shell and Telnet Management
 To configure remote console features:
1. Select Ma
intenance > Remote Management > Remote Console. The Remote
Console screen displays:

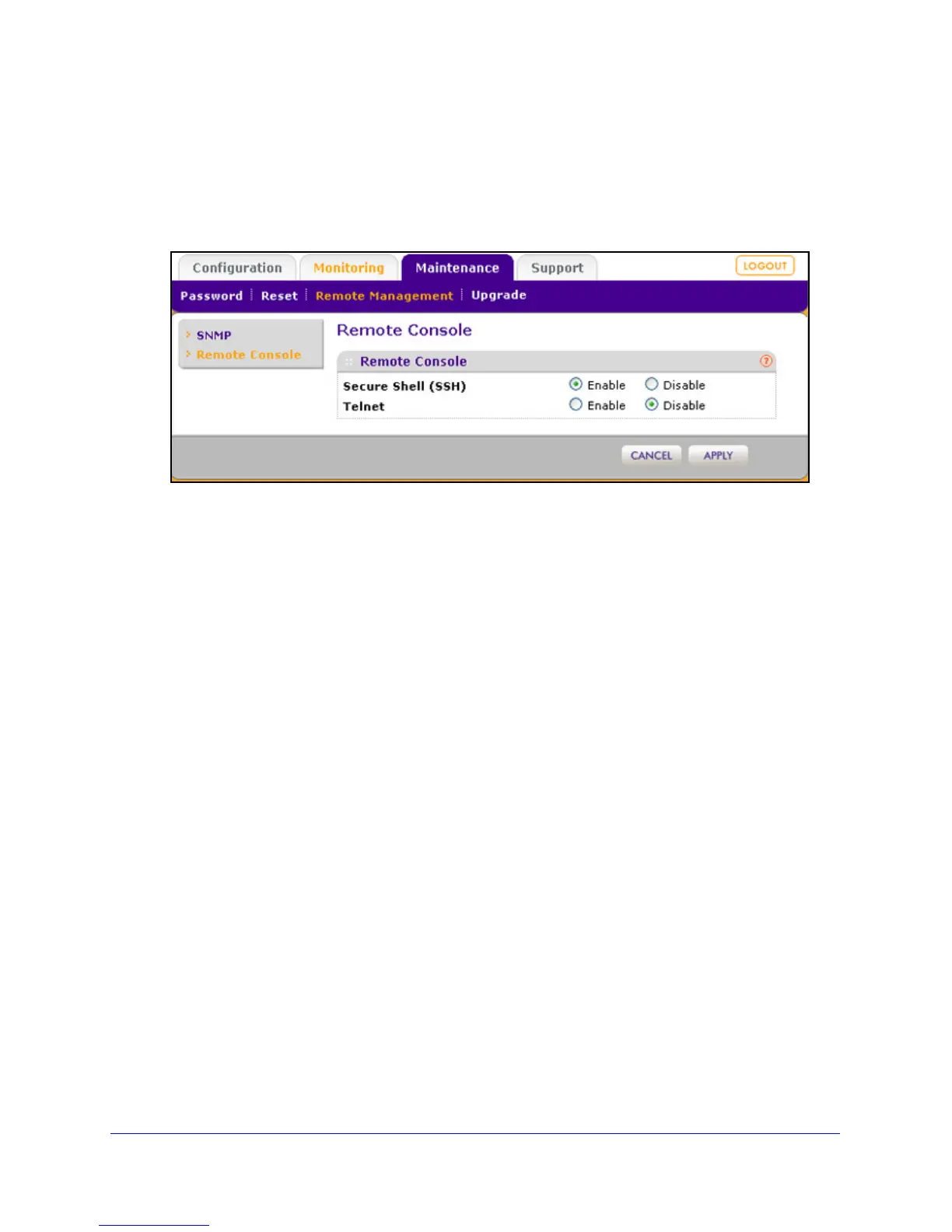

Figure 32.
2. Enable or disable the remote console features:
• Secu
re Shell (SSH). To enable this feature, select the Enable radio button, which is
the default setting. Select the Disable button to disable the feature.
• T
elnet. To enable this feature, select the Enable radio button. Select the Disable
button to disable the feature, which is the default setting.
3. Click Apply to save
your settings.
 To manage the wireless access point over a Telnet connection:
1. Connect an Ethern
et cable to the console port of the wireless access point.
2. Connect th
e other end of the cable to a VT100/ANSI terminal or a workstation.
If you attach a PC, Apple Macintosh, or UNIX workstation, start a secure
terminal-emu
lation program, and configure the terminal-emulation program to use the
following settings:
• Baud
rate: 9600 bps
• Dat
a bits: 8
• Parity: n
one
• S
top bit: 1
• Flow con
trol: none
3. S
tart a secure Telnet session from the terminal or workstation to the wireless access point. A
screen similar to the following should display:

NETGEAR WNDAP360 Specifications

General

VLAN support	Yes
Frequency band	2.4 - 5 GHz
Number of users	50 user(s)
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Weight (imperial)	1.93 lbs
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE802.1x
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, EAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, TTLS, WEP, WPA, WPA2
Power requirements	12 VDC, 1A
Power consumption (typical)	10.51 W
Minimum system requirements	Internet Explorer 6.0, Mozilla Firefox 1.5
Compatible operating systems	- Windows Vista, XP, 2000, 98, Me - Mac OS - UNIX - Linux
Internal	No
LED indicators	LAN
Cable lock slot type	Kensington

Weight and Dimensions

Height	54.76 mm
Weight	878 g
Dimensions (WxDxH)	253.75 x 253.76 x 54.76 mm
