NETGEAR WNDAP360 User Manual

Advanced Configuration
99
ProSafe Dual Band Wireless-N Access Point WNDAP360
 To configure the wireless access point to repeat the wireless signal:
1. Select the 802.11b/bg/ng or 802.11a/na tab.
2. Conf
igure the security profiles on the wireless access point (AP2 in the previous figure):
a. Select Co
nfiguration > Wireless Bridge. The Bridging screen displays (see the
following figure).
b. Select
the Enable Wireless Bridging check box. The Local MAC Address field is a
nonconfigurable field that shows the MAC address of the wireless access point.
c. Select
the Wireless Point-to-Multi-Point Bridge radio button. The screen adjusts.

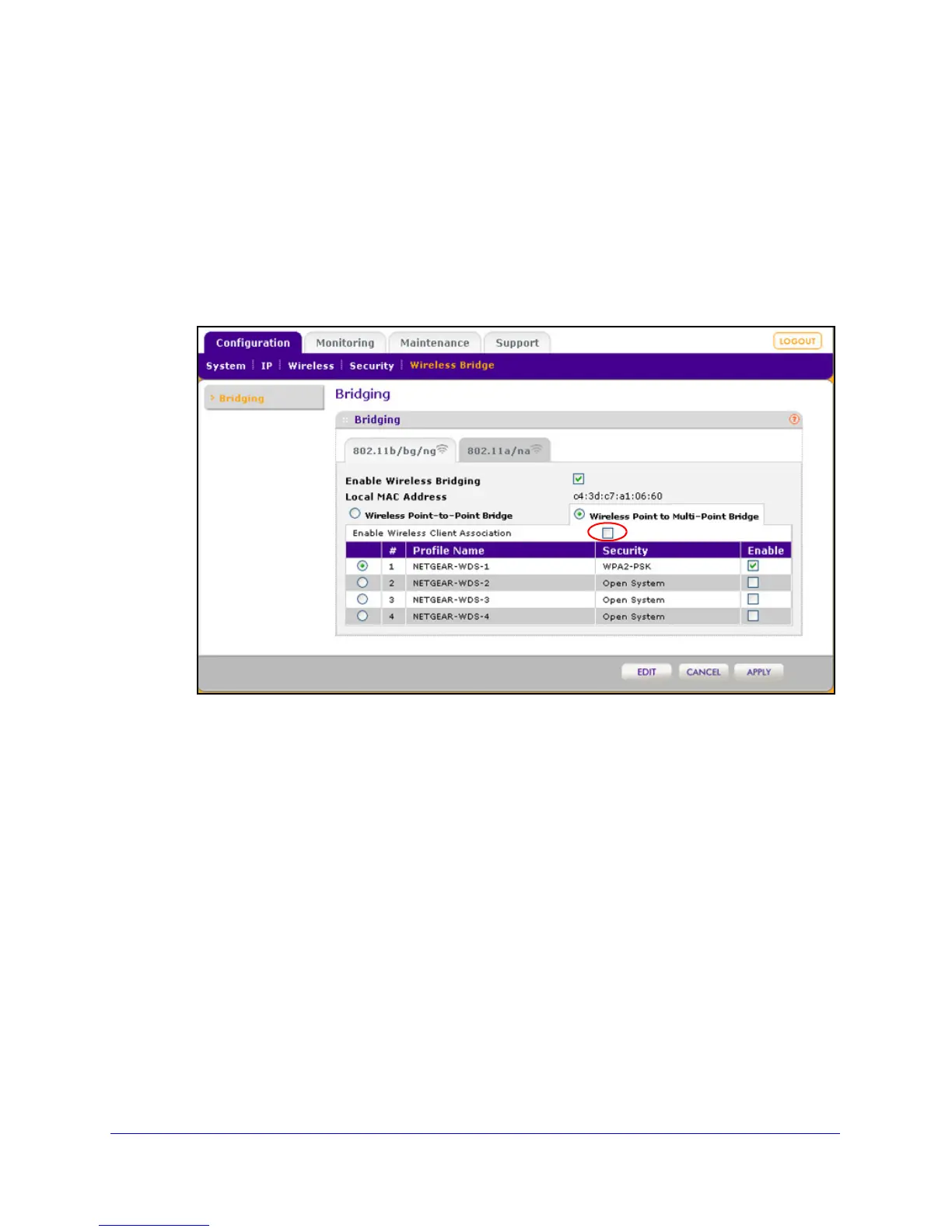

Figure 60.
d. The profile table shows four security profiles. Choose a security profile to edit by
selecting the corresponding radio button to the left of the profile.
e. Click Edit to con
figure the selected security profile settings. The Edit Security Profile
screen displays for the selected security profile. (The following figure contains some
examples.)

NETGEAR WNDAP360 Specifications

General

VLAN support	Yes
Frequency band	2.4 - 5 GHz
Number of users	50 user(s)
Cabling technology	10/100/1000BASE-T(X)
Ethernet LAN data rates	10, 100, 1000 Mbit/s
Maximum data transfer rate	1000 Mbit/s
Antenna connector type	SMA
Antenna gain level (max)	5 dBi
Weight (imperial)	1.93 lbs
Networking features	Gigabit Ethernet
Compliance industry standards	IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE802.1x
WAN connection	Ethernet (RJ-45)
Ethernet LAN (RJ-45) ports	1
Security algorithms	64-bit WEP, 128-bit WEP, EAP, EAP-TLS, EAP-TTLS, PEAP, SSH, SSL/TLS, TTLS, WEP, WPA, WPA2
Power requirements	12 VDC, 1A
Power consumption (typical)	10.51 W
Minimum system requirements	Internet Explorer 6.0, Mozilla Firefox 1.5
Compatible operating systems	- Windows Vista, XP, 2000, 98, Me - Mac OS - UNIX - Linux
Internal	No
LED indicators	LAN
Cable lock slot type	Kensington

Weight and Dimensions

Height	54.76 mm
Weight	878 g
Dimensions (WxDxH)	253.75 x 253.76 x 54.76 mm
