User Manual MX Series Voice Gateway
8 New Rock Technologies, Inc.
Table 1-11 Configuration Combination of MX60

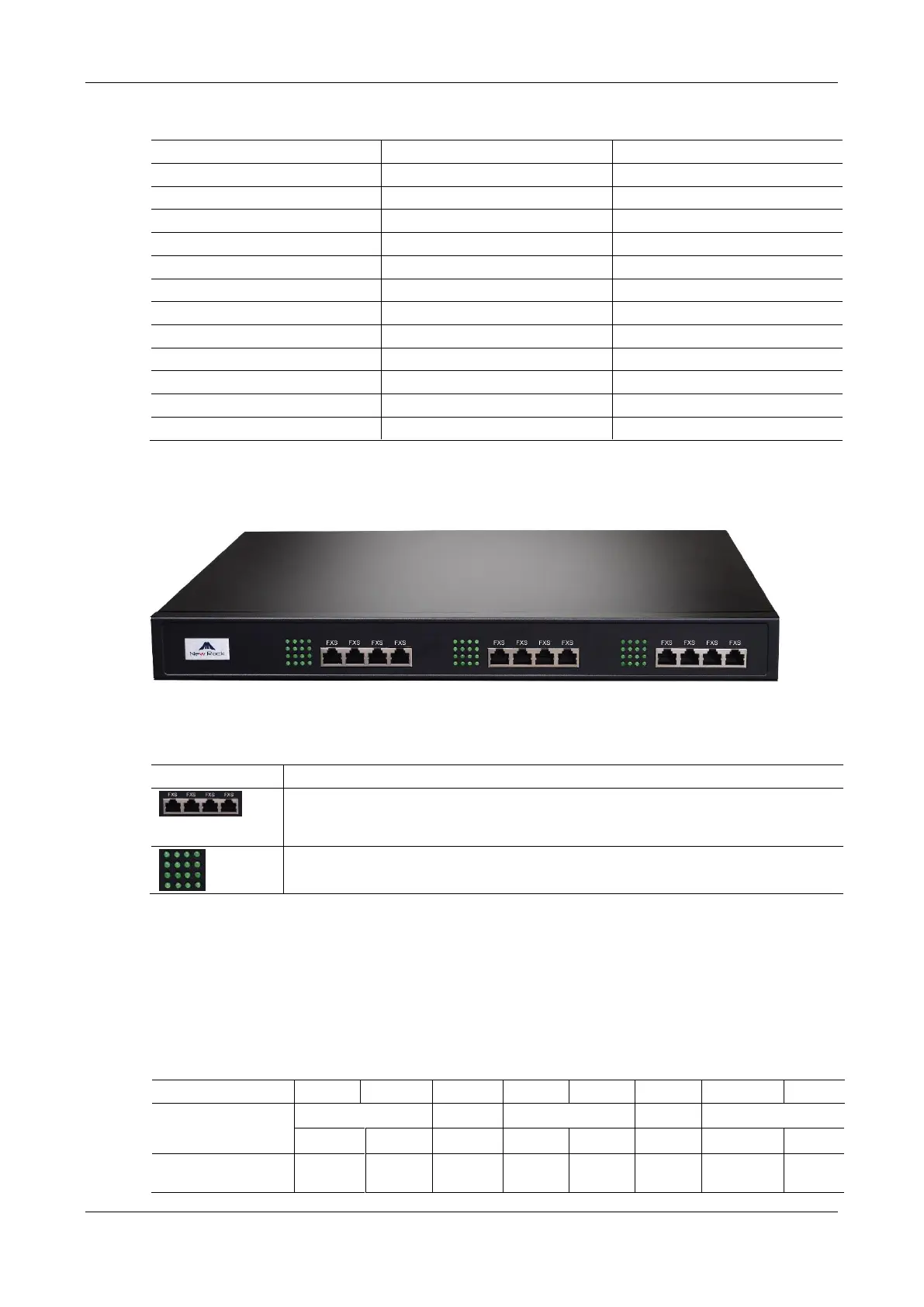

Figure 1-7 MX60 Front Panel
Table 1-12 Description of MX60 Front Panel
Three interface slots; each can correspond with four RJ45 sockets; each RJ45socket can
correspond with four pairs of analog lines.
Note: Numbers of interface slots vary from different configuration.
Matrix of 4 x 4 LED status indicators on interface card.
Each RJ45 socket has 8 pins leading out 4 pairs of analog telephone or trunk lines in agreement with the
pair specifications for Ethernet interfaces, whose corresponding relations can be seen in the table below.
CAT-5 cables are used to connect the interface card and distribution panel in equipment installation.
Standard RJ11 telephone lines can be used to plug in a RJ45 socket. The telephone/trunk lines are connected
to the 3
rd
pair of pins for simple call test.
Table 1-13 Pin Specifications for MX60 RJ45 Socket Port
