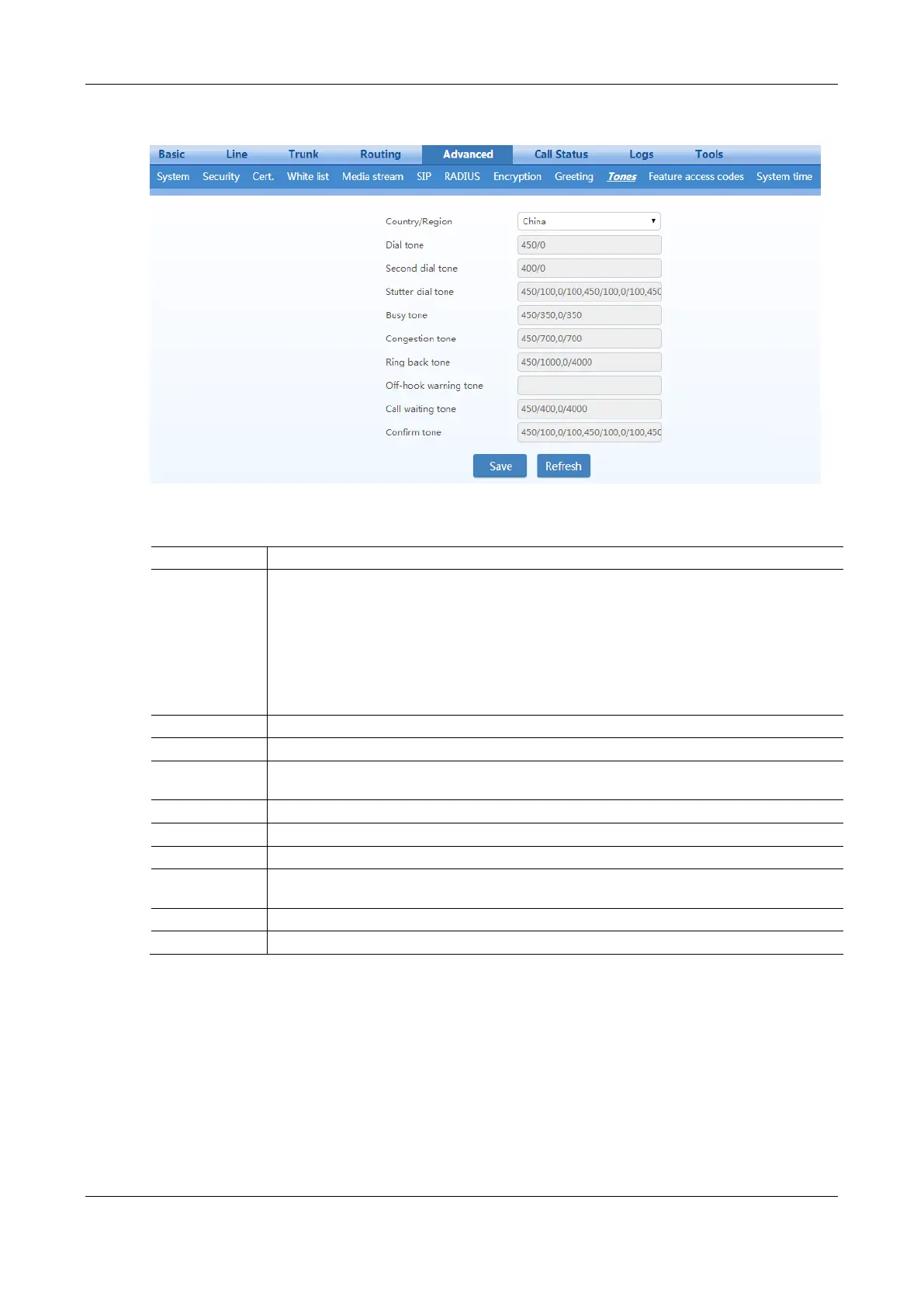

Figure 2-52 Call Progress Tone Configuration Interface
Table 2-32 Call Progress Tone Configuration Parameters
Name
Description
Country/Region
There are progress tone plans for several countries and regions that are pre-programmed in
gateways. Users may also specify the tone plan according to the national standard. Gateways
provide tone plans for the following countries and regions:
China, the United States, France, Italy, Germany, Mexico, Chile, Russia, Japan, South Korea, Hong
Kong, Taiwan, India, Sudan, Iran, Algeria, Pakistan, Philippines, Kazakhstan, Singapore, Israel,
Malaysia, Indonesia, United Arab Emirates, Zimbabwe, Australia.
User-defined: define the call progress tones by yourself.
Dial tone
Prompt tone of off-hook dial tone.
Second dial tone
Second stage dial tone.
Stutter dial tone
Prompt of voice mail, or when the subscriber line is set with “Do not Disturb Service and Call
Transfer”.
Busy tone
Busy line prompt.
Congestion tone
Notification of call set up failure due to resource limit.
Ring back tone
The tone sent to caller when ringing is on.
Off-hook
warning tone
Reminds the subscriber when the phone is off-hook and no dialup has occurred.
Call waiting tone
Prompt the subscriber that another caller is attempting to call.
Confirm tone
Confirms function keys are being entered.
Here are examples that illustrate the various call-progress tones
 350+440 (dial tone)
Indicates the dual–frequency tone consisting of 350 and 440 Hz
 480+620/500,0/500 (busy)
Indicates the dual–frequency tone consisting of 480 and 620 Hz, repeated playing with 500
milliseconds on and 500 milliseconds off.
Note: 0/500 indicates 500 milliseconds mute.
