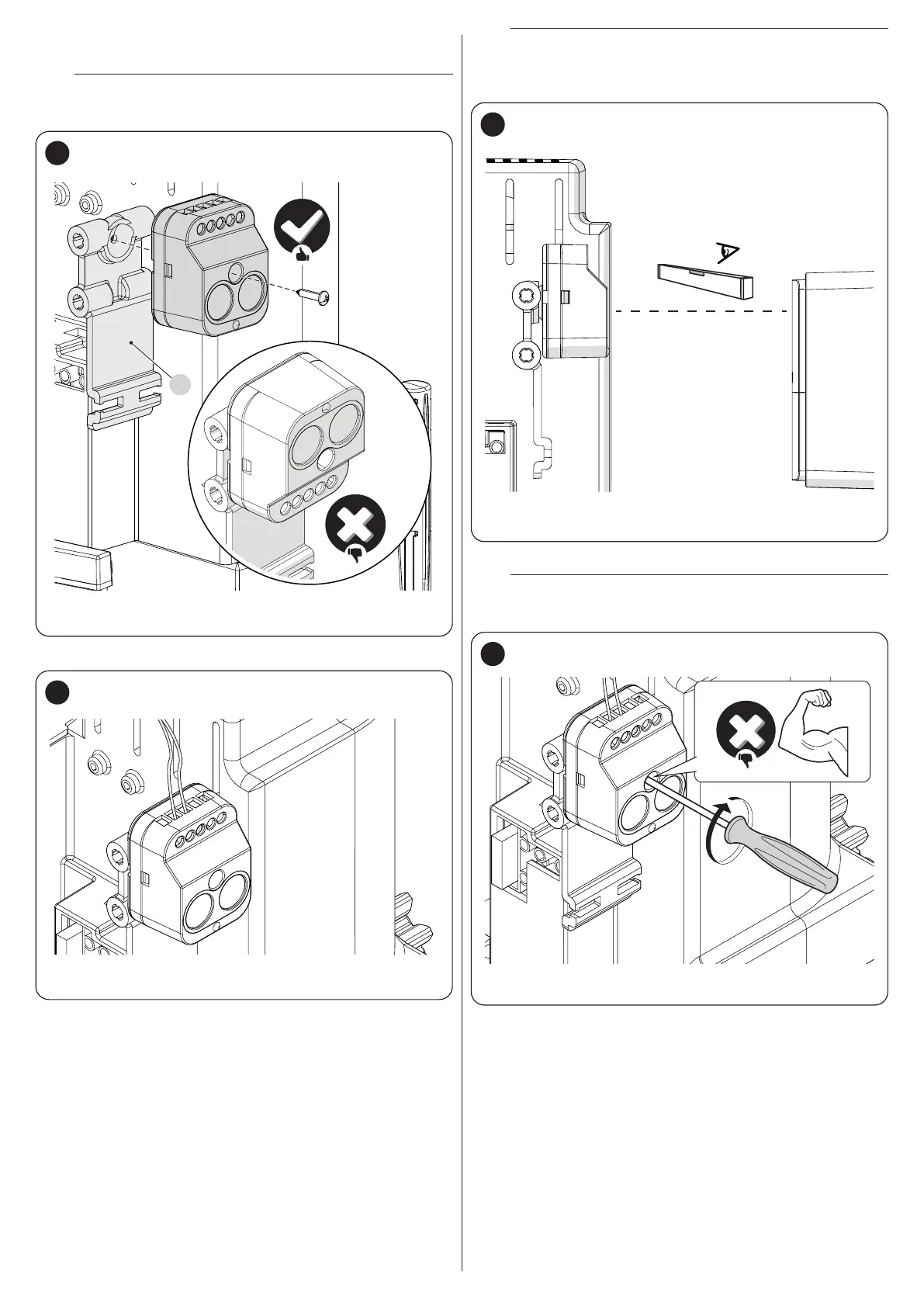

7. fasten the photocell to the bracket (M) using the same screw and
nut removed previously (“Figure 78")
a
Warning! Pay attention to the direction of installation of
the photocell.
M
78
8. wire the device (“Figure 79")
79
a
Warning! Before proceeding with the nal fastening, veri-
fy that the photocell is aligned with the reecting unit (EP-
MOB) or (EPMOR).
80
9. permanently fasten the photocell to the mounting bracket.
a
Do not apply excessive pressure while fastening the pho-
tocell to the bracket.
81
