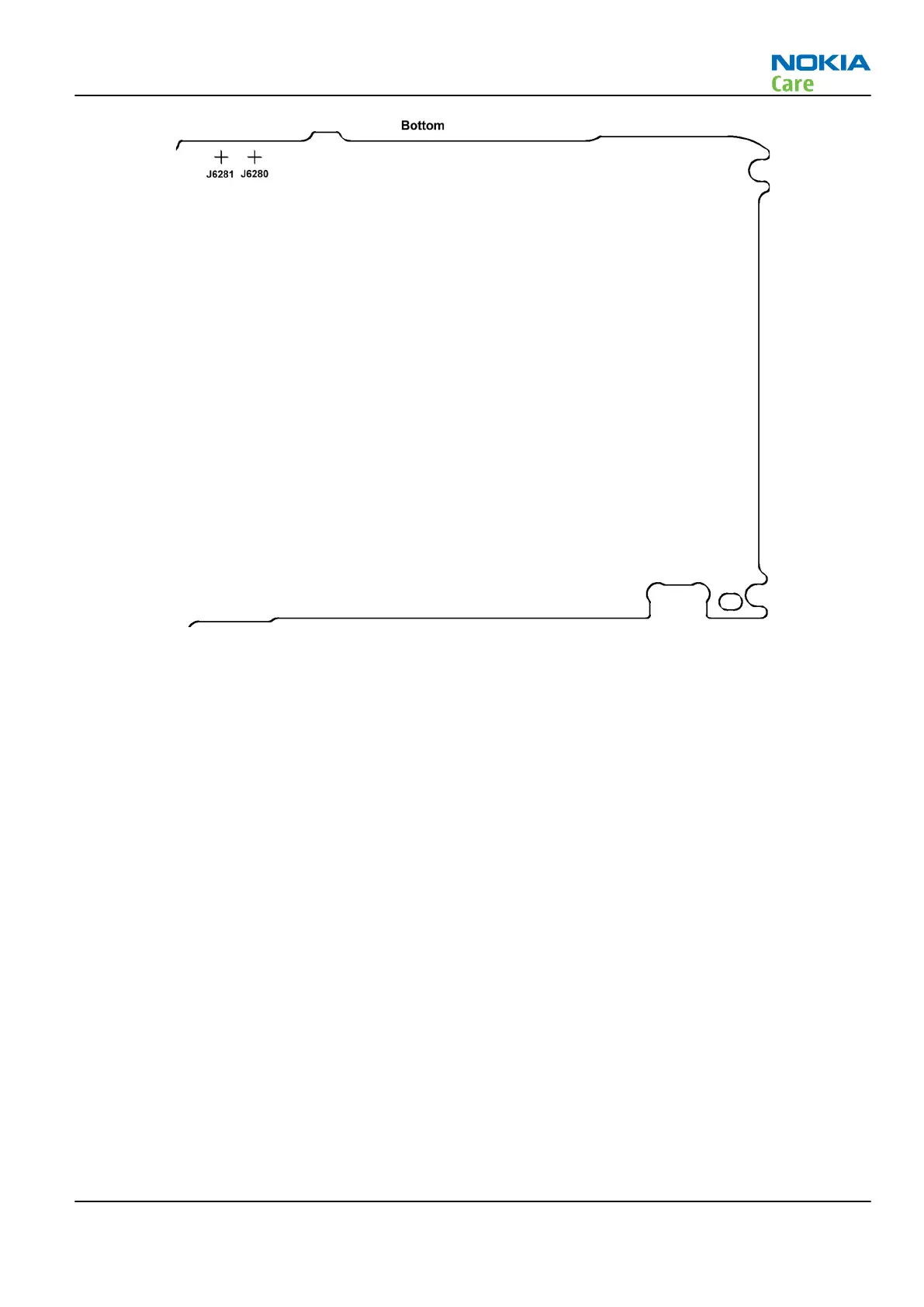

Figure 21 GPS antenna test pads

In order to probe GPS RF test points, inject 1575.52 MHz tone @ -50dBm at the GPS antenna test connector

and select Receiver On, then probe the GPS RF test points as shown in the figure below. Compare RF levels

with a known reference phone.

RM-356

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –43
