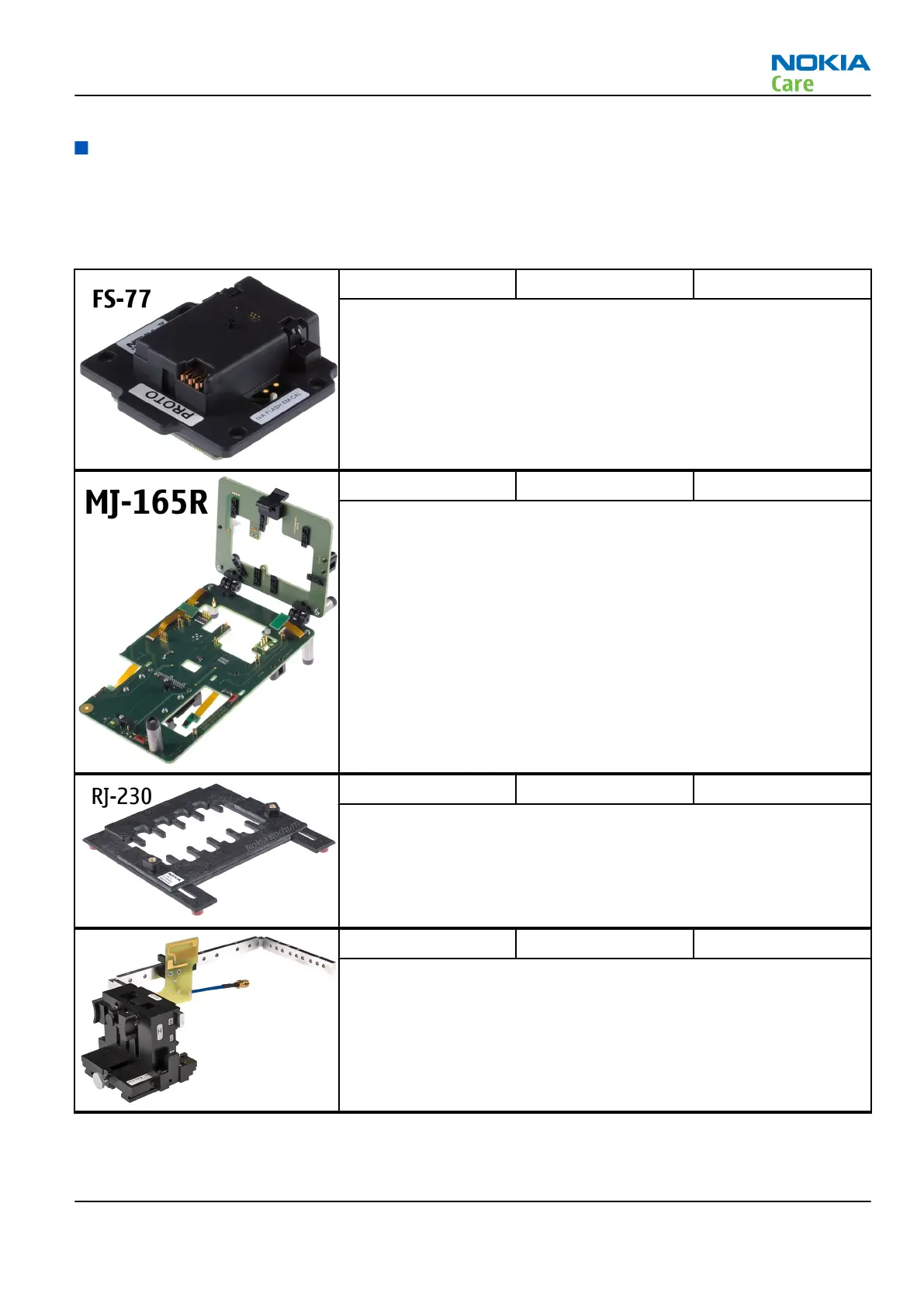

Service tools
Product specific tools
The table below gives a short overview of service devices that can be used for testing, error analysis, and
repair of product RM-356. For the correct use of the service devices, and the best effort of workbench setup,
please refer to various concepts.
FS-77 Flash adapter
For flashing (also dead phones) with SS-46. RF testing and tuning, and
EM calibration on ATO level with SS-62 (mechanical locking concept),
CU-4 supported.
MJ-165 Module jig
MJ-165 is meant for troubleshooting, testing, tuning and flashing on
the engine level (CU-4 supported).
The jig includes an RF interface for GPS, GSM, WCDMA and Bluetooth.
RJ-230 Soldering jig
RJ-230 is a soldering jig used for soldering and as a rework jig for the
engine module.
SA-131 RF coupler
SA-131 is a RF coupler for GPS testing. It is used together with SS-62.
RM-356
Service Tools and Service Concepts
Issue 1 COMPANY CONFIDENTIAL Page 2 –5
Copyright © 2008 Nokia. All rights reserved.
