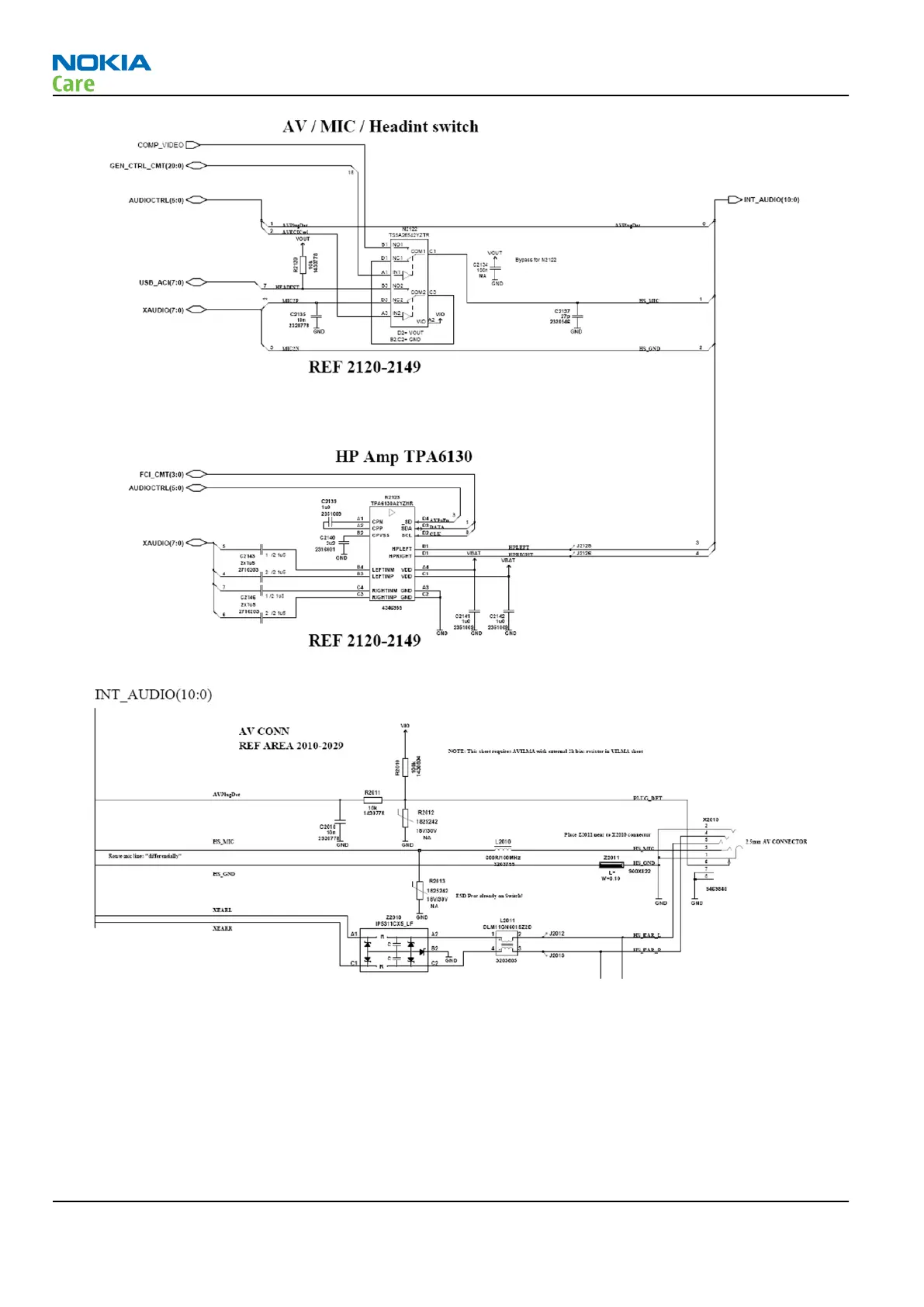

Figure 78 External earpiece and microphone circuitry (AV connected on the right)
Vibra
Vibra is used for the vibra alarm function.
The vibra motor is connected to the Avilma ASIC VibraP and VibraN Pulse Width Modulated (PWM) outputs.
RM-356
System Module and User Interface
Page 6 –34 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
