Nokia MOBILE TERMINAL - Service Concept for RF Testing and RF;BB Tuning

Type Description
PCS-1 Power cable
XCS-4 Modular cable
XRS-6 RF cable
GPIB control cable
USB cable
Service concept for RF testing and RF/BB tuning

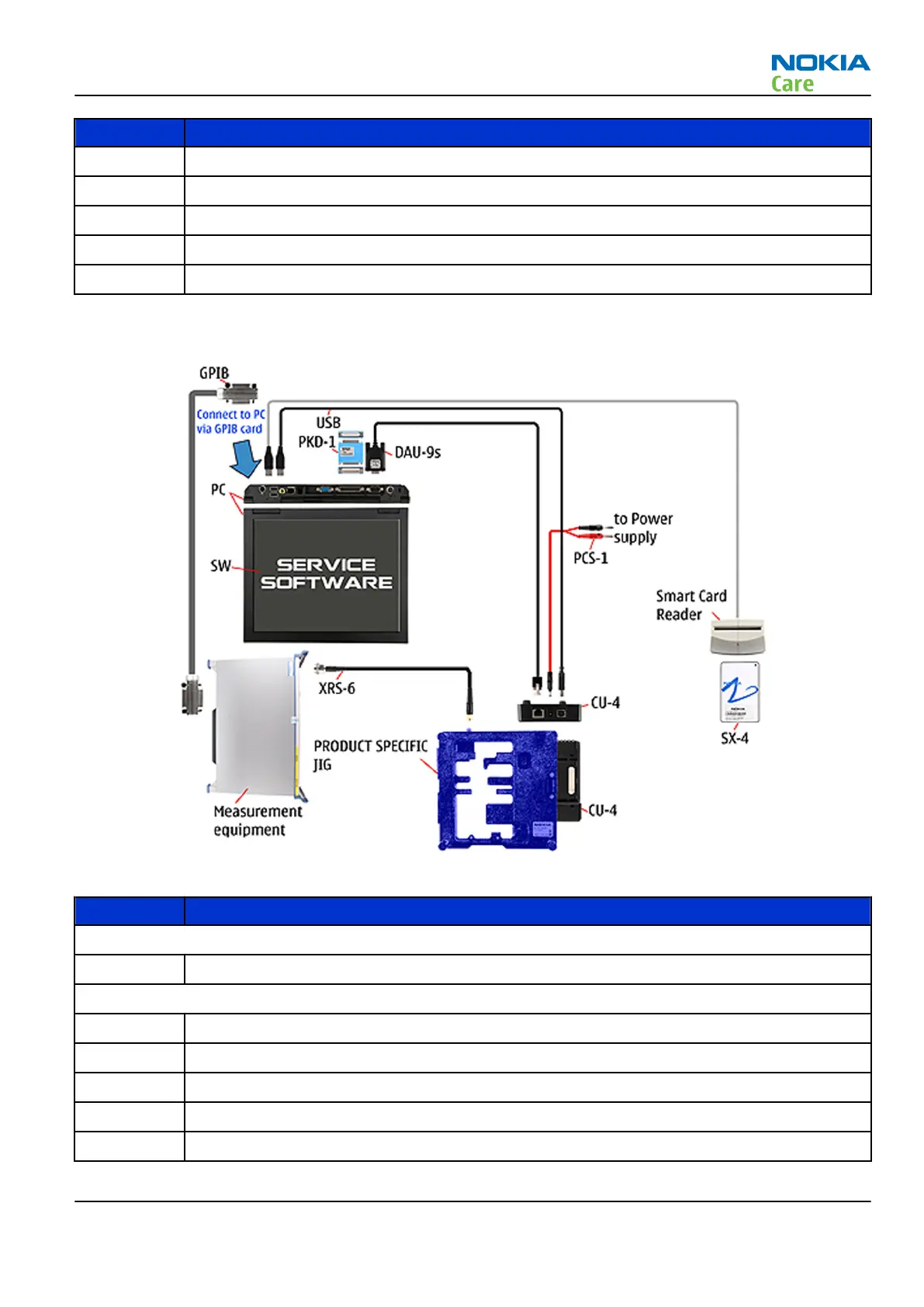

Figure 8 Service concept for RF testing and RF/BB tuning
Type Description
Product specific devices
MJ-165 Module jig
Other devices
CU-4 Control unit
PK-1/PKD-1 SW security device
SX-4 Smart card
Measurement equipment
Smart card reader
RM-356
