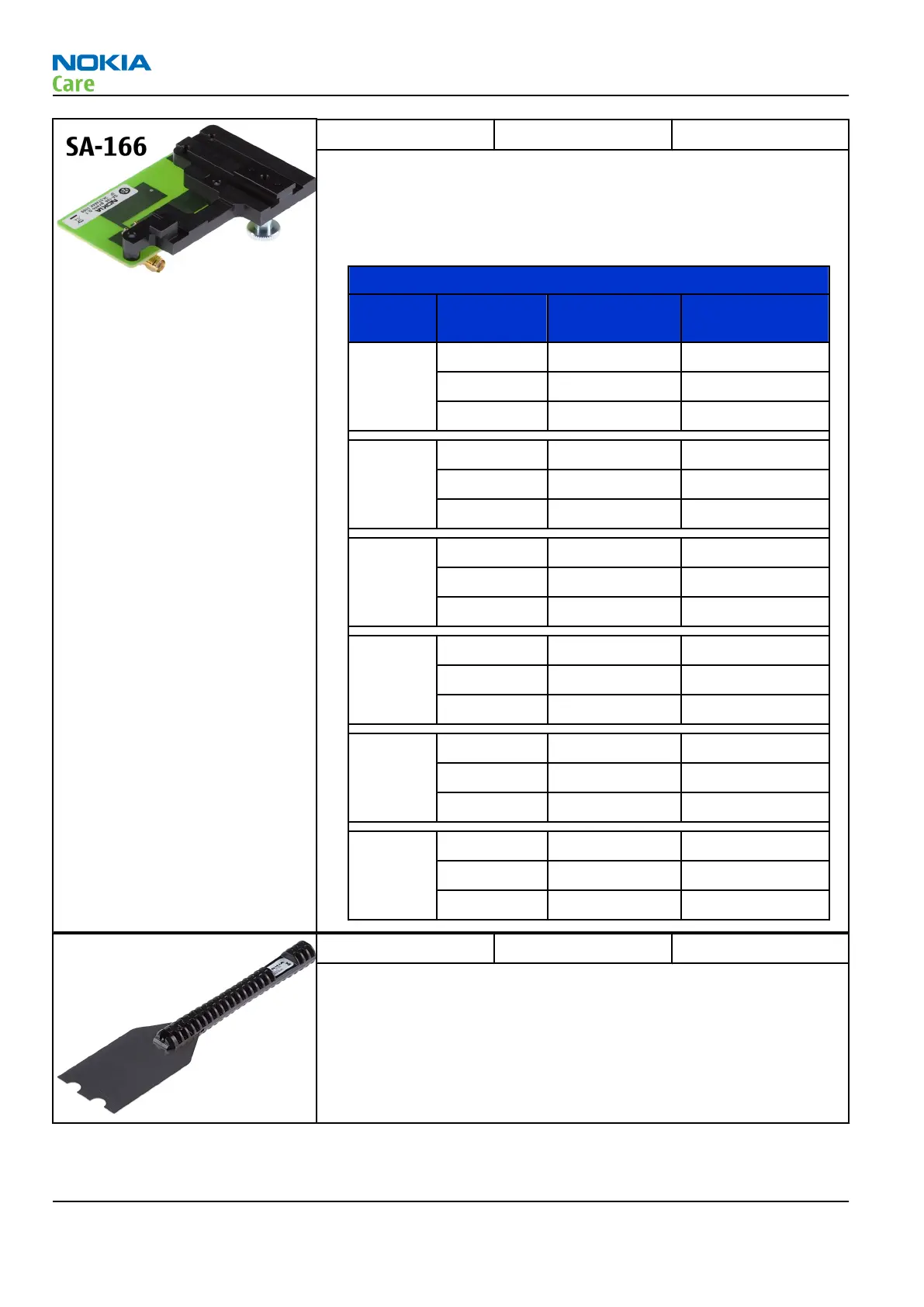

SA-166 RF coupler
SA-166 is an RF coupler for WCDMA and GSM RF testing. It is used
together with the product-specific flash adapter.
The following table shows attenuations from the antenna pads of the
mobile terminal to the SMA connectors of SA-166 . The setup used for
measuring the values is SA-166 + FS-77 + CU-4.
•
Attenuation values for inductive RF coupler SA-166
Band Channel Attenuation TX
(dB)
Attenuation RX
(dB)
GSM 850
Low 24,5 19,5
Mid 24,3 20,5
High 23,5 18,5
GSM 900
Low 21,2 17,5
Mid 19,4 17,5
High 18,8 15,5
GSM
1800
Low 11,4 9,2
Mid 10,7 9,2
High 9,0 9,2
GSM
1900
Low 8,0 8,2
Mid 7,5 8,2
High 8,6 9,2
WCDMA
Band I
Low 9,2 11,1
Mid 9,1 12,1
High 10,1 13,1
WCDMA
Band VIII
Low 18,7 19,5
Mid 18,5 19,5
High 19,5 19,5
SS-195 Display removal tool
SS-195 is used for removing displays.
RM-356
Service Tools and Service Concepts
Page 2 –6 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
