Bluetooth and FM Radio Self Tests
Context
A flash adapter (or phone data cable) connected to a PC with Phoenix service software is required.
Steps
1. Place the phone in the flash adapter.
2. Start Phoenix service software.
3. Choose File → Scan Product.
4. From the Mode drop-down menu, set to Local.

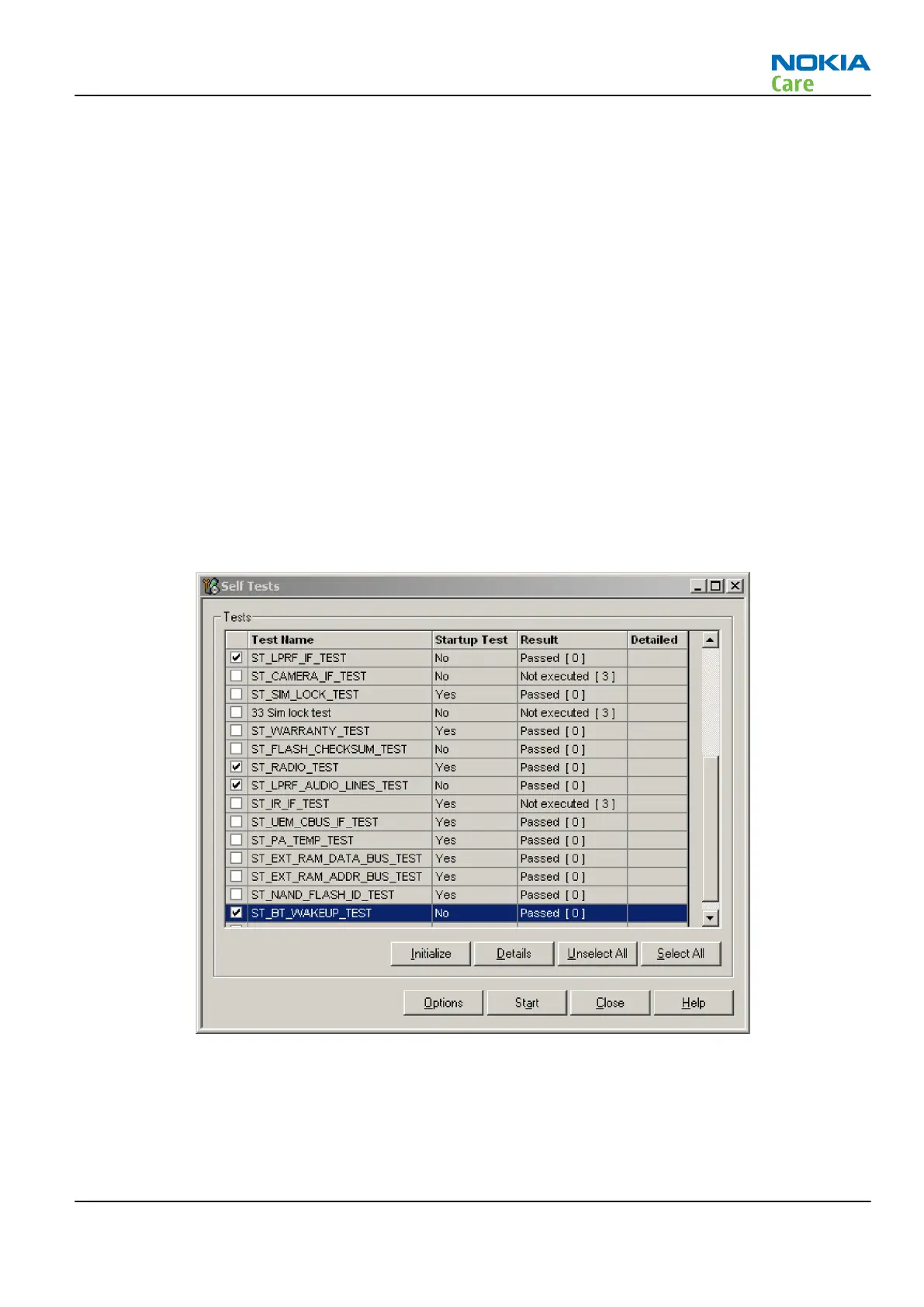

5. Choose Testing → Self Tests.
6. In the Self Tests window check the following Bluetooth and FM Radio tests:
•
ST_LPRF_IF_TEST
•
ST_LPRF_AUDIO_LINES_TEST
•
ST_BT_WAKEUP_TEST
•
ST_RADIO_TEST
7. To run the test, click Start
Bluetooth BER test
Context
JBT-9 or SB-6 Bluetooth test box (BT box) is required to perform a BER test. If a BT box is not available,
Bluetooth functionality can be checked by transferring a file to another Bluetooth phone.
RM-356
BB Troubleshooting and Manual Tuning Guide
Issue 1 COMPANY CONFIDENTIAL Page 3 –55
Copyright © 2008 Nokia. All rights reserved.
