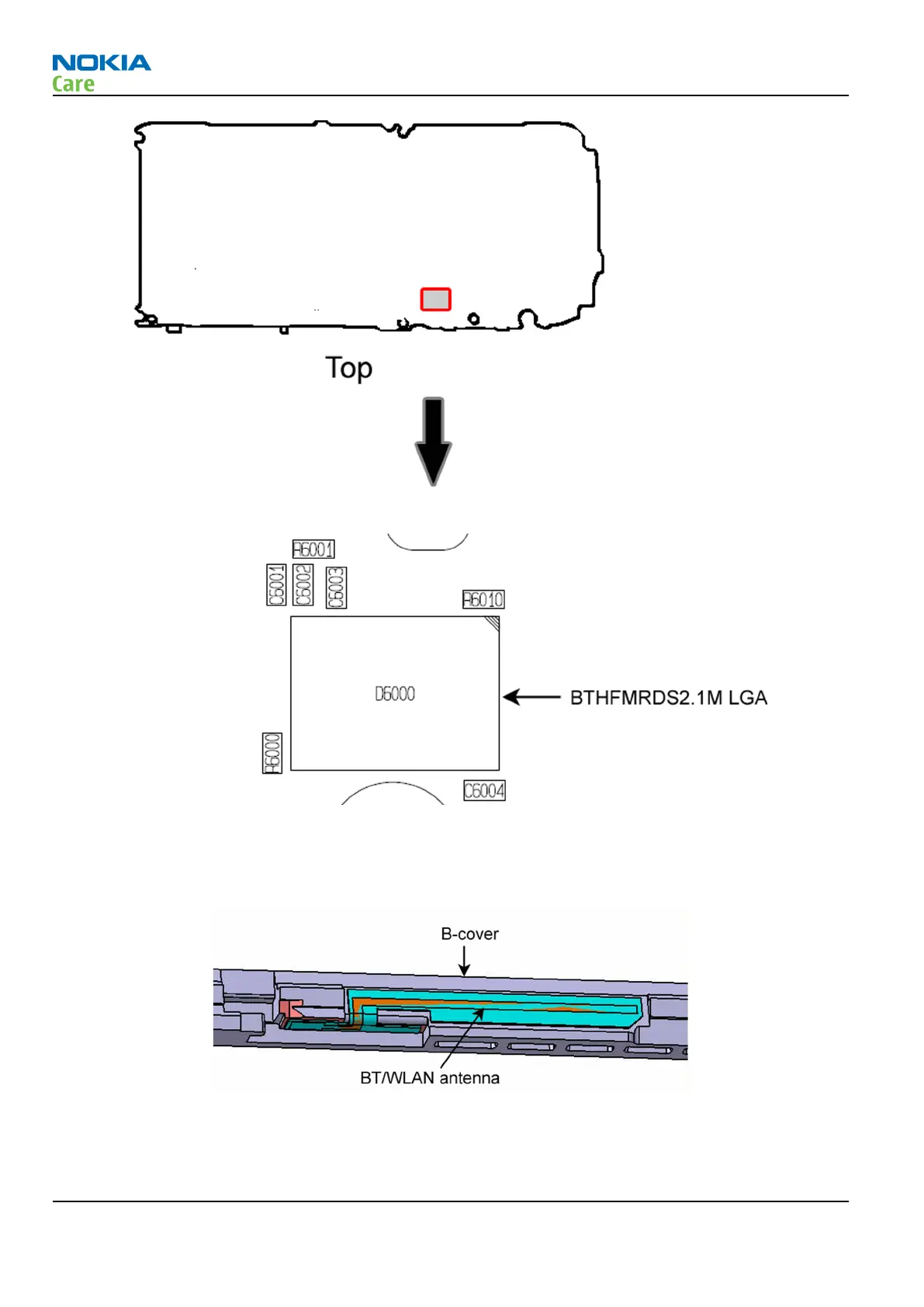

Figure 29 Key component placement for BTHFMRDS2.1M
The shared Bluetooth/WLAN antenna is attached to the side of the B-cover, and the Bluetooth RF signal is
routed through a WLAN front-end module.
Figure 30 BT/WLAN antenna
The FM radio audio signal is routed to the headset connector through the BB ASIC shared by the phone audio
functions.
RM-356
BB Troubleshooting and Manual Tuning Guide
Page 3 –54 COMPANY CONFIDENTIAL Issue 1
