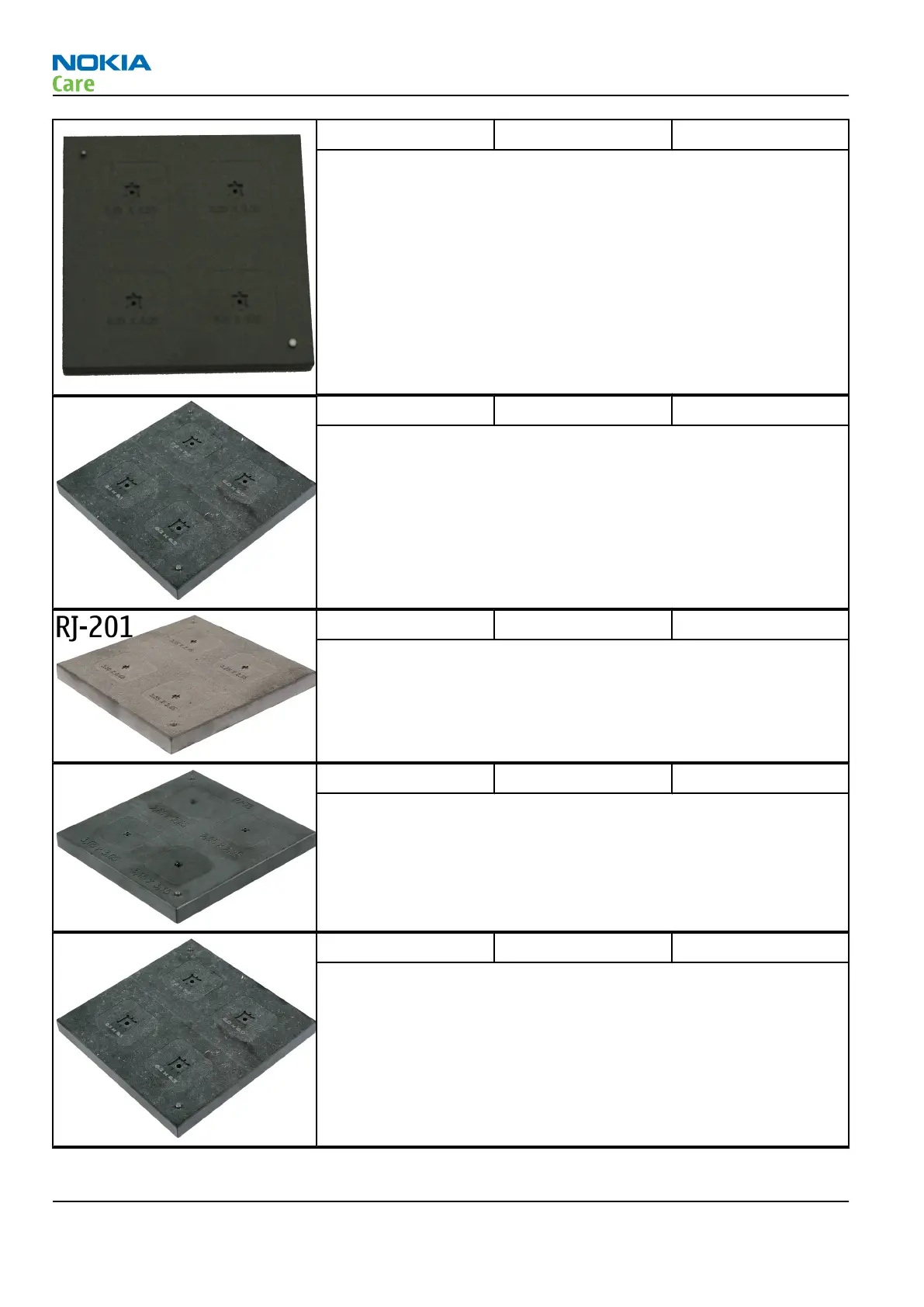

RJ-169 Rework jig
RJ-169 is a rework jig used when servicing the WCDMA PA (N7540)
component. It is used together with the ST-59 stencil.
RJ-184 Rework jig
RJ-184 is a rework jig used when servicing the microphone (B2170).
It is used together with the ST-61 rework stencil.
RJ-201 Rework jig
RJ-201 is a rework jig used when servicing the GSM 850/900 TX filter
(Z7503) component.
This jig is used together with the ST-65 stencil.
RJ-73 Rework jig
RJ-73 is a rework jig used when servicing the N1451 component. It is
used together with the ST-29 rework stencil.
RJ-93 Rework jig
RJ-93 is used as a rework jig for the Front End Module (FEM).
This rework jig takes the FEM or power amplifier (PA) module (N7520)
for spreading the soldering paste to the component. Must be used
together with the ST-40 stencil.
RM-356
Service Tools and Service Concepts
Page 2 –8 COMPANY CONFIDENTIAL Issue 1
Copyright © 2008 Nokia. All rights reserved.
