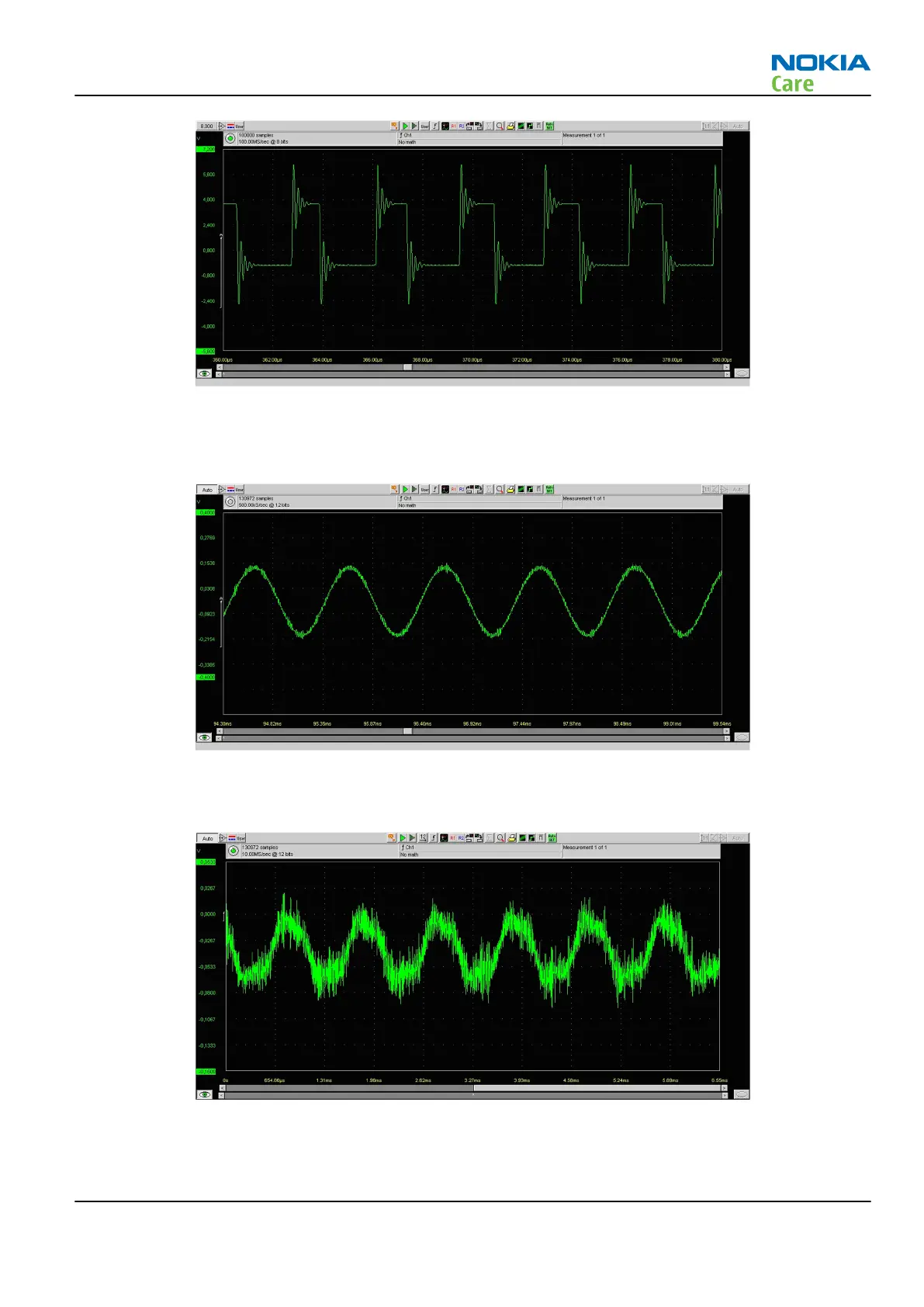

Figure 32 Single-ended output waveform of the Ext_in_IHF_out out loop measurement when speaker is connected

(measured at speaker pads). No filter is used.

External output from AV

Figure 33 Single-ended output waveform of the Ext_in_Ext_out loop.

External output from AV (acoustic input)

Figure 34 Single-ended output waveform of the HP_microphone_in_Ext_out loop.

RM-356

BB Troubleshooting and Manual Tuning Guide

Issue 1 COMPANY CONFIDENTIAL Page 3 –61
