3. Use the following settings in the TX control window:

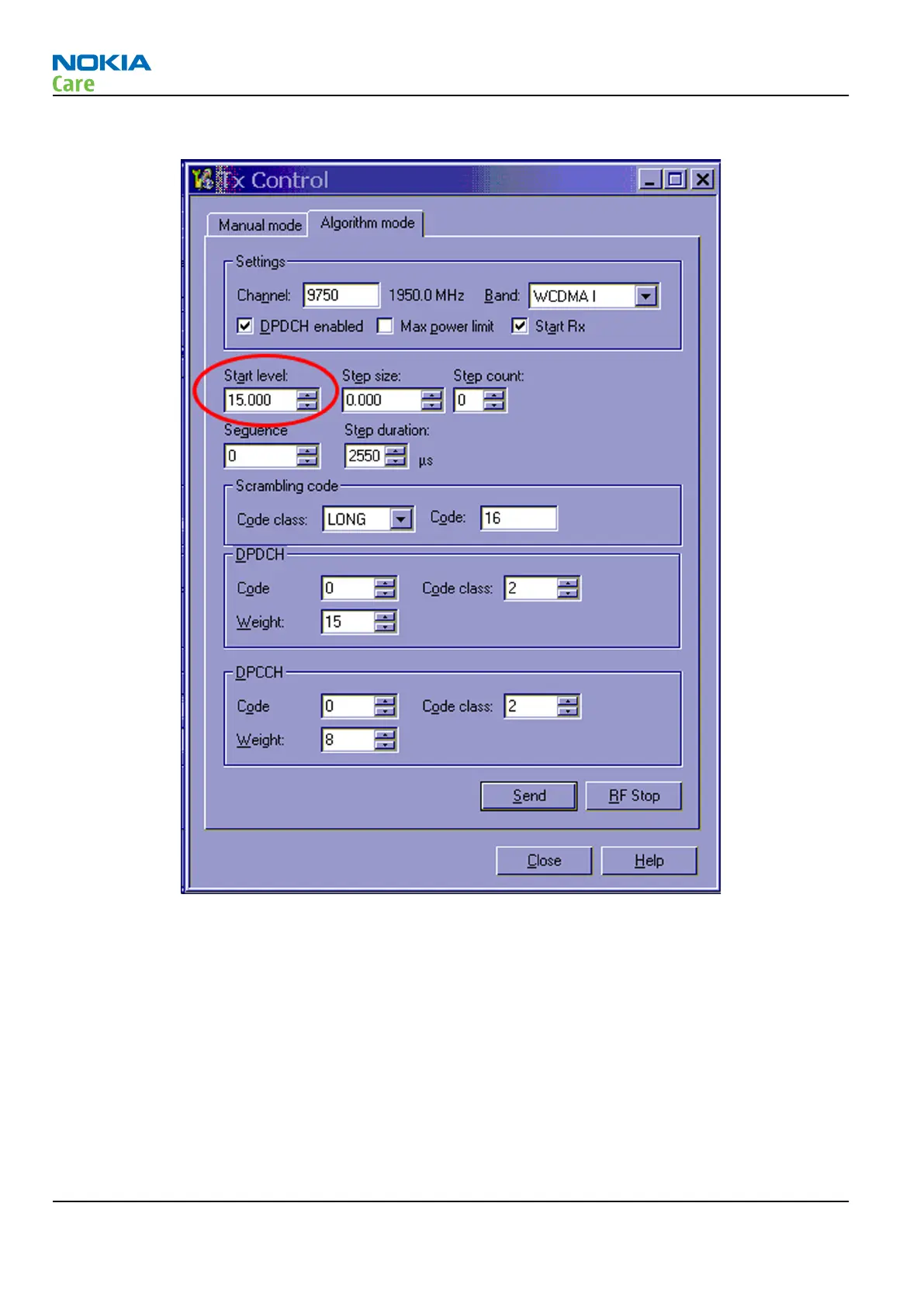

Figure 44 Phoenix WCDMA TX control window
Note: Use the Start level option to set the TX power level.
4. Click Send to enable the settings and activate TX.
If settings are changed (eg. new channel), you have to click RF Stop and Send again.
5. Use the CMU200 to check the WCDMA power.
