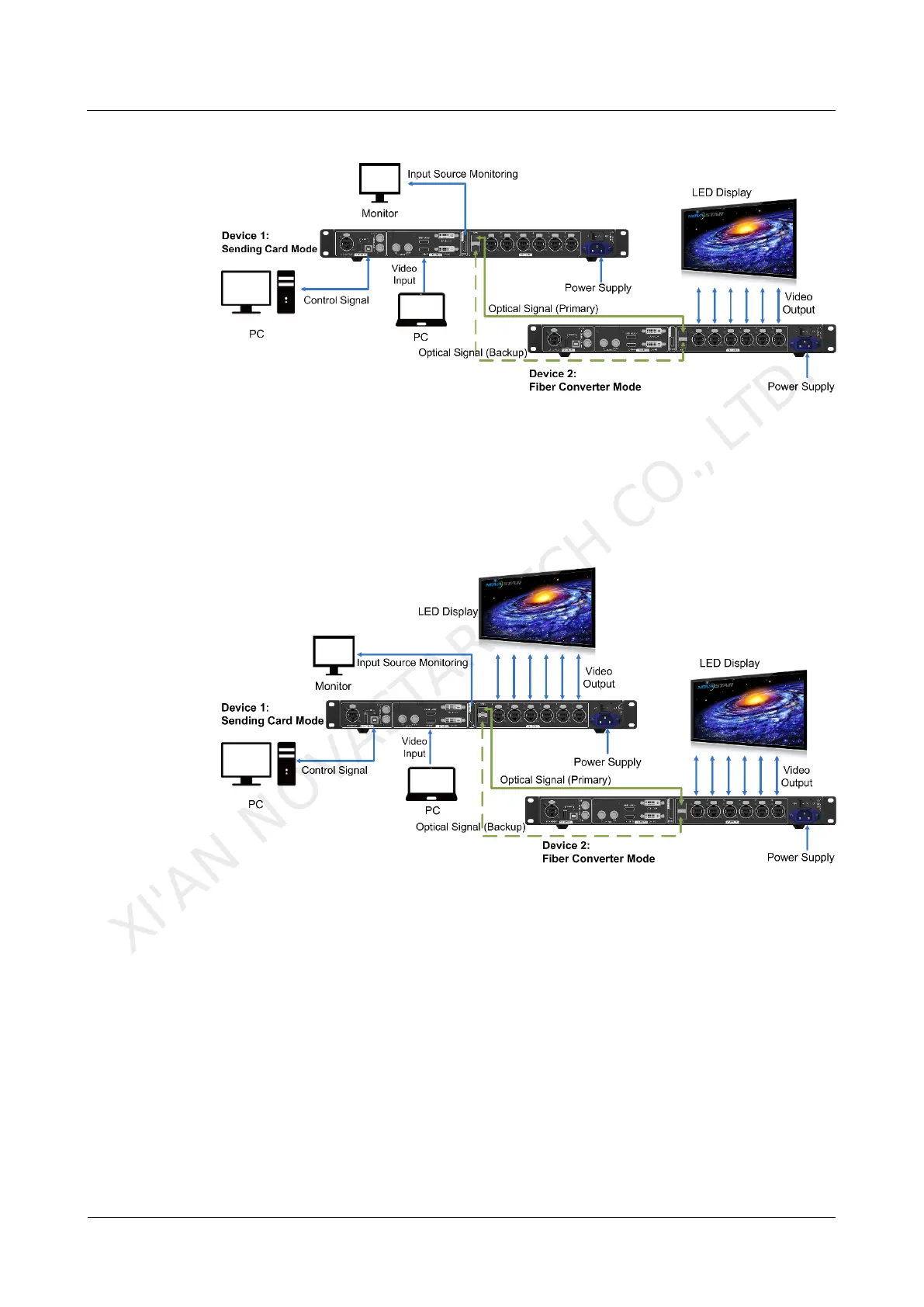

Figure 3-2 Application of fiber converter mode
Scenario 3: Application of Dual-Output Working Mode
Set the working mode for the two devices respectively, as shown in Figure 3-3.
Device 1 uses the optical ports and Gigabit Ethernet ports to output video signals at
the same time.
Figure 3-3 Application of dual-output working mode
