NXP Semiconductors MPC5777M - Power management: PMC, POR;LVD, sequencing; Power management electrical characteristics

MPC5777M Microcontroller Data Sheet, Rev. 6
Electrical characteristics
NXP Semiconductors74
3.14 Power management: PMC, POR/LVD, sequencing
3.14.1 Power management electrical characteristics
The power management module monitors the different power supplies. It also generates the internal supplies that are required
for correct device functionality. The power management is supplied by the V
DD_HV_PMC
supply (see Table 8).
3.14.2 Power management integration
In order to ensure correct functionality of the device, it is recommended to follow below integration scheme.

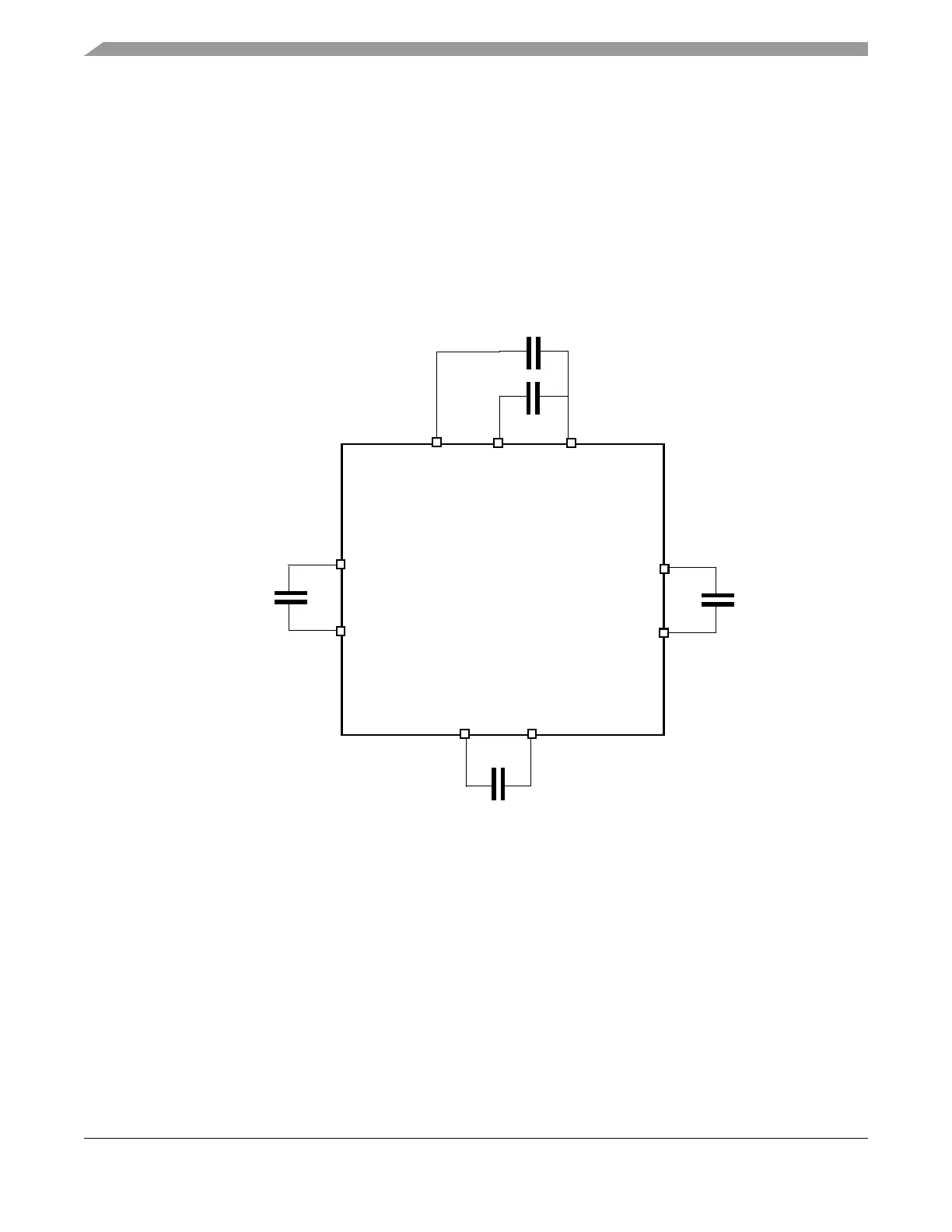

Figure 20. Recommended supply pin circuits
C
HV_PMC
C
HV_FLA
VSS
VDD_HV_PMC
VDD_HV_FLA
MPC5777M
VDD_HV_IO
VSS
C
HV_IO
(2)
C
HV_ADC
VSS
VDD_LV
C
LV
(1)
VDD_HV_ADV VSS_HV_ADV
(1) One capacitance near each V
DD_LV
pin
(2) One capacitance near each V
DD_HV
pin
