Electrical characteristics
MPC5777M Microcontroller Data Sheet, Rev. 6
NXP Semiconductors 123

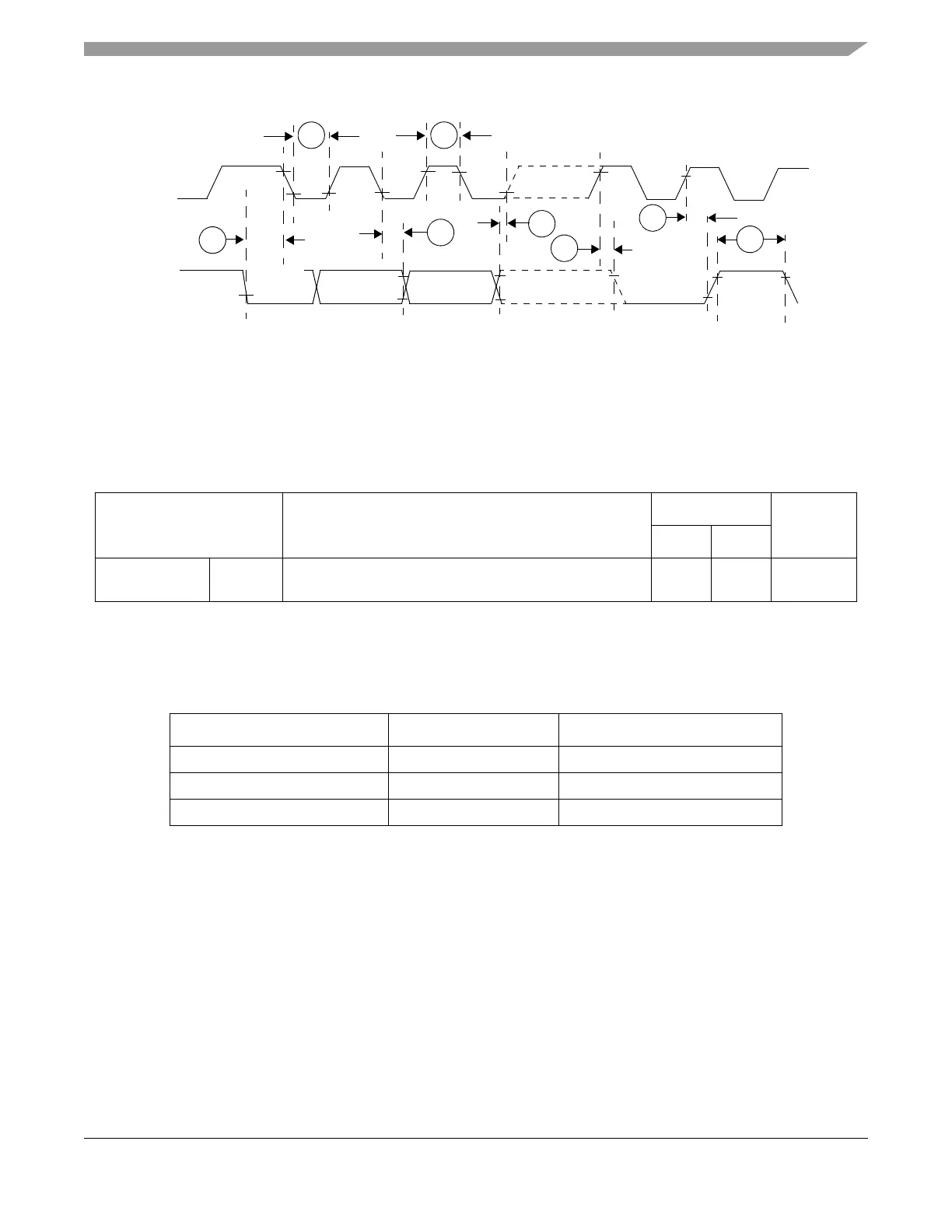

Figure 53. I
2
C input/output timing
3.16.9 GPIO delay timing
The GPIO delay timing specification is provided in the following table.
3.16.10 Package characteristics
The following table lists the case numbers for each available package for the device.
Table 72. GPIO delay timing
Symbol Parameter
Value
Unit
Min Max
IO_delay CC Delay from SIUL2 MSCR register bit update to pad function
enable at the input of the I/O pad
525 ns
Table 73. Package case numbers
Package Type Device Type Case Outline Number
416TEPBGA Production 98ARE10523D
416TEPBGA Emulation 98ASA00493D
512TEPBGA Production or Emulation 98ASA00262D
SCL
SDA
1
2
4
5
6
7
3
8
