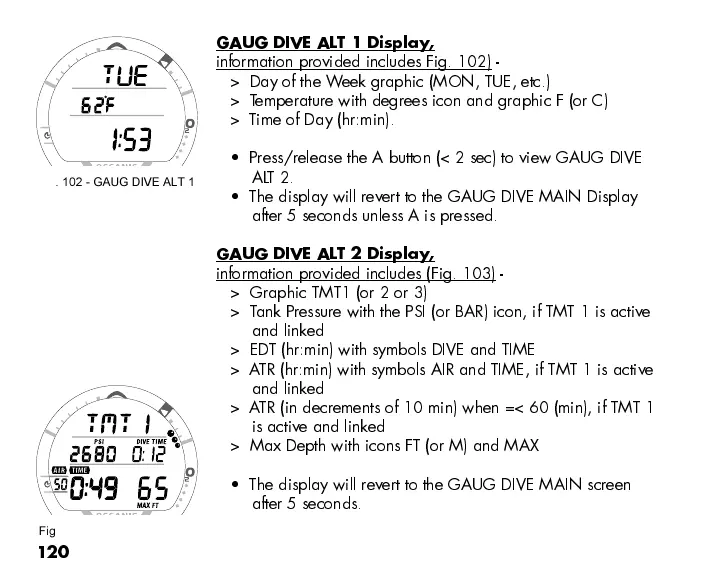

Fig. 103 - GAUG DIVE ALT 2
GAUG DIVE ALT 1 Display,
information provided includes Fig. 102) -
> Day of the Week graphic (MON, TUE, etc.)
> Temperature with degrees icon and graphic F (or C)
> T ime of Day (hr:min).
 Press/release the A button (< 2 sec) to view GAUG DIVE
ALT 2.
 The display will revert to the GAUG DIVE MAIN Display
after 5 seconds unless A is pressed.
GAUG DIVE ALT 2 Display,
information provided includes (Fig. 103) -
> Graphic TMT1 (or 2 or 3)
> Tank Pressure with the PSI (or BAR) icon, if TMT 1 is active
and linked
> EDT (hr:min) with symbols DIVE and TIME
> ATR (hr:min) with symbols AIR and TIME, if TMT 1 is active
and linked
> ATR (in decrements of 10 min) when =< 60 (min), if TMT 1
is active and linked
> Max Depth with icons FT (or M) and MAX
 The display will revert to the GAUG DIVE MAIN screen
after 5 seconds.
Fig. 102 - GAUG DIVE ALT 1
