25
The VT3 will enter POST DIVE SURFACE MODE following a dive
upon ascent to 4 FT (1.2 M). The Surface Interval Time colon
will flash during the first 10 minutes after a NORM/GAUG dive
(Fig. 16), or first 1 minute after a FREE dive.
During the first 2 hours after a dive, the SURF MAIN screen for
the Operating Mode selected prior to the dive (NORM, GAUG,
or FREE) remains on display as the Default SURF MAIN screen.
NORM SURF MAIN
, information provided includes (Fig. 17):
> Graphic NORM alternating with the Altitude Level graphic
SEA (or EL2 through EL13) and WET (if the unit is wet),
each On 3 seconds then 1/4 second blank.
> Battery icon if an VT3 Low Battery Warning Condition
exists, flashing if Too Low
> Tank Pressure and symbol PSI (or BAR), if the Receiver is
successfully Linked with an active T ransmitter.
> Symbol DIVE and Number of that dive (0 if no dive has
been made yet).
> Symbols TIME and SURF, and Surface Interval (hr:min).
> NITROX symbol, if any GAS is set for a Nitrox dive.
> Tank 1 icon representing GAS 1, which is the default start
Gas and default Gas 10 minutes after a dive.
> TLBG if any after a NORM or FREE dive.
> O2BG if any after a NORM Nitrox dive.

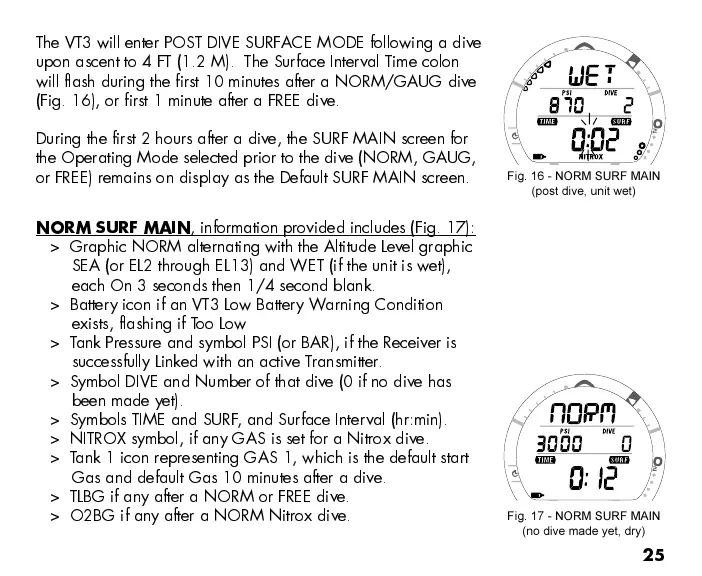

Fig. 16 - NORM SURF MAIN
(post dive, unit wet)
Fig. 17 - NORM SURF MAIN
(no dive made yet, dry)
