Oceanic VT3 - Overview of Displayed Symbols and Icons

74

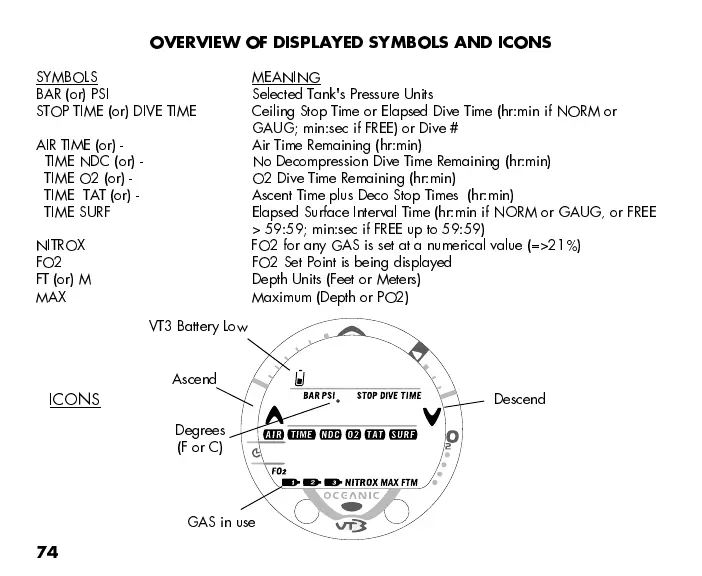

OVERVIEW OF DISPLAYED SYMBOLS AND ICONS
SYMBOLS MEANING
BAR (or) PSI Selected Tank's Pressure Units
STOP TIME (or) DIVE TIME Ceiling Stop Time or Elapsed Dive Time (hr:min if NORM or
GAUG; min:sec if FREE) or Dive #
AIR TIME (or) - Air Time Remaining (hr:min)
TIME NDC (or) - No Decompression Dive Time Remaining (hr:min)
TIME O2 (or) - O2 Dive Time Remaining (hr:min)
TIME TAT (or) - Ascent Time plus Deco Stop Times (hr:min)
TIME SURF Elapsed Surface Interval Time (hr:min if NORM or GAUG, or FREE
> 59:59; min:sec if FREE up to 59:59)
NITROX FO2 for any GAS is set at a numerical value (=>21%)
FO2 FO2 Set Point is being displayed
FT (or) M Depth Units (Feet or Meters)
MAX Maximum (Depth or PO2)
VT3 Battery Low
Ascend
Degrees
(F or C)
Descend
ICONS
GAS in use
