48

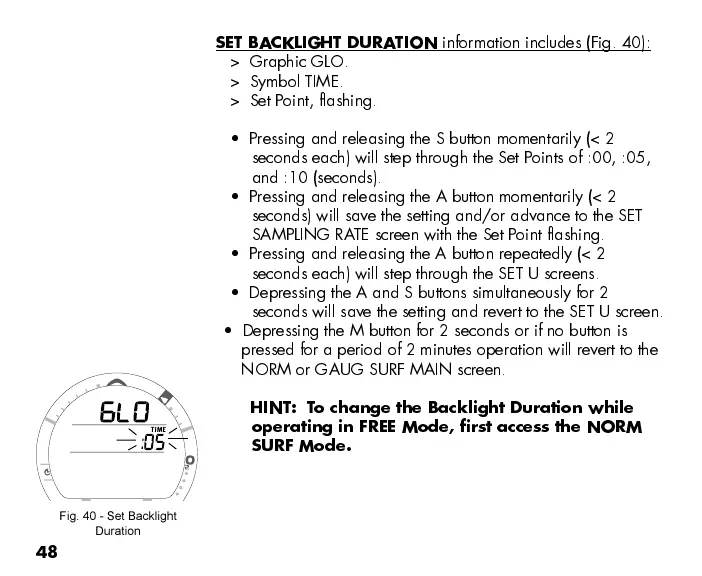

SET BACKLIGHT DURATION
information includes (Fig. 40):
> Graphic GLO.
> Symbol TIME.
> Set Point, flashing.
Pressing and releasing the S button momentarily (< 2
seconds each) will step through the Set Points of :00, :05,
and :10 (seconds).
Pressing and releasing the A button momentarily (< 2
seconds) will save the setting and/or advance to the SET
SAMPLING RATE screen with the Set Point flashing.
Pressing and releasing the A button repeatedly (< 2
seconds each) will step through the SET U screens.
Depressing the A and S buttons simultaneously for 2
seconds will save the setting and revert to the SET U screen.
Depressing the M button for 2 seconds or if no button is
pressed for a period of 2 minutes operation will revert to the
NORM or GAUG SURF MAIN screen.
HINT : To change the Backlight Duration while
operating in FREE Mode, first access the NORM
SURF Mode.
Fig. 40 - Set Backlight
Duration
