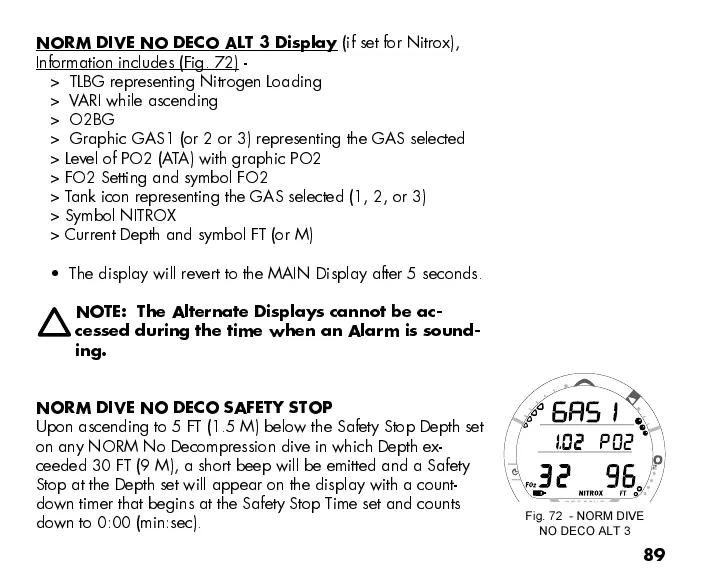

89
NORM DIVE NO DECO ALT 3 Display
(if set for Nitrox),
Information includes (Fig. 72) -
> TLBG representing Nitrogen Loading
> VARI while ascending
> O2BG
> Graphic GAS1 (or 2 or 3) representing the GAS selected
> Level of PO2 (ATA) with graphic PO2
> FO2 Setting and symbol FO2
> Tank icon representing the GAS selected (1, 2, or 3)
> Symbol NITROX
> Current Depth and symbol FT (or M)
The display will revert to the MAIN Display after 5 seconds.
NOTE: The Alternate Displays cannot be ac-
cessed during the time when an Alarm is sound-
ing.
NORM DIVE NO DECO SAFETY STOP
Upon ascending to 5 FT (1.5 M) below the Safety Stop Depth set
on any NORM No Decompression dive in which Depth ex-
ceeded 30 FT (9 M), a short beep will be emitted and a Safety
Stop at the Depth set will appear on the display with a count-
down timer that begins at the Safety Stop Time set and counts
down to 0:00 (min:sec).
Fig. 72 - NORM DIVE
NO DECO ALT 3
