20

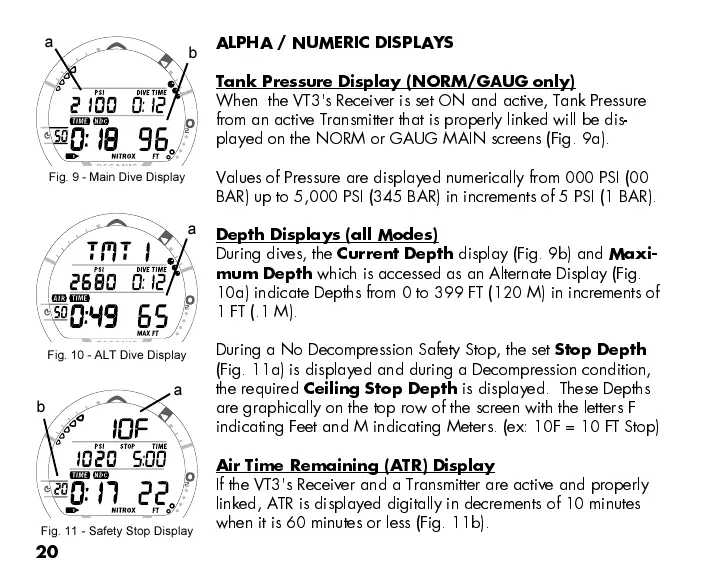

ALPHA / NUMERIC DISPLAYS
Tank Pressure Display (NORM/GAUG only)
When the VT3's Receiver is set ON and active, Tank Pressure
from an active Transmitter that is properly linked will be dis-
played on the NORM or GAUG MAIN screens (Fig. 9a).
Values of Pressure are displayed numerically from 000 PSI (00
BAR) up to 5,000 PSI (345 BAR) in increments of 5 PSI (1 BAR).
Depth Displays (all Modes)
During dives, the
Current Depth
display (Fig. 9b) and
Maxi-
mum Depth
which is accessed as an Alternate Display (Fig.
10a) indicate Depths from 0 to 399 FT (120 M) in increments of
1 FT (.1 M).
During a No Decompression Safety Stop, the set
Stop Depth
(Fig. 11a) is displayed and during a Decompression condition,
the required
Ceiling Stop Depth
is displayed. These Depths
are graphically on the top row of the screen with the letters F
indicating Feet and M indicating Meters. (ex: 10F = 10 FT Stop)
Air Time Remaining (ATR) Display
If the VT3's Receiver and a Transmitter are active and properly
linked, ATR is displayed digitally in decrements of 10 minutes
when it is 60 minutes or less (Fig. 11b).
Fig. 11 - Safety Stop Display
a
Fig. 9 - Main Dive Display
b
a
Fig. 10 - ALT Dive Display
a
b
