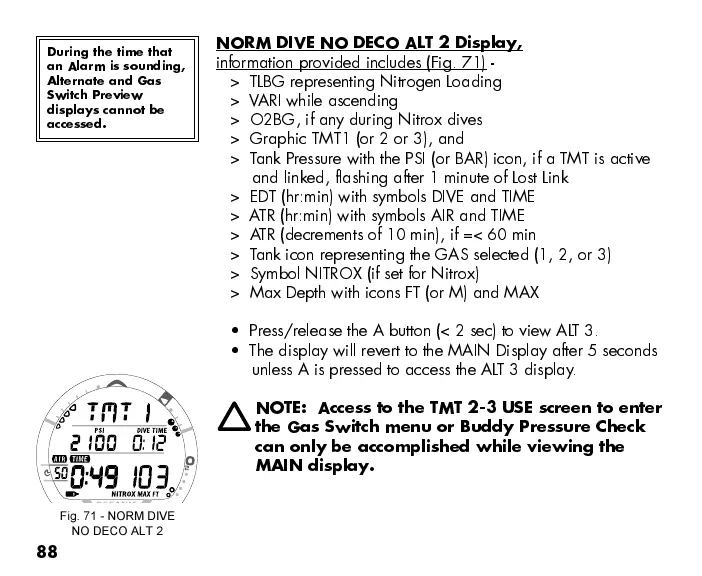

88
NORM DIVE NO DECO ALT 2 Display,
information provided includes (Fig. 71) -
> TLBG representing Nitrogen Loading
> VARI while ascending
> O2BG, if any during Nitrox dives
> Graphic TMT1 (or 2 or 3), and
> Tank Pressure with the PSI (or BAR) icon, if a TMT is active
and linked, flashing after 1 minute of Lost Link
> EDT (hr:min) with symbols DIVE and TIME
> ATR (hr:min) with symbols AIR and TIME
> ATR (decrements of 10 min), if =< 60 min
> Tank icon representing the GAS selected (1, 2, or 3)
> Symbol NITROX (if set for Nitrox)
> Max Depth with icons FT (or M) and MAX
Press/release the A button (< 2 sec) to view ALT 3.
The display will revert to the MAIN Display after 5 seconds
unless A is pressed to access the ALT 3 display.
NOTE: Access to the TMT 2-3 USE screen to enter
the Gas Switch menu or Buddy Pressure Check
can only be accomplished while viewing the
MAIN display.
Fig. 71 - NORM DIVE
NO DECO ALT 2
During the time that
an Alarm is sounding,
Alternate and Gas
Switch Preview
displays cannot be
accessed.
