13

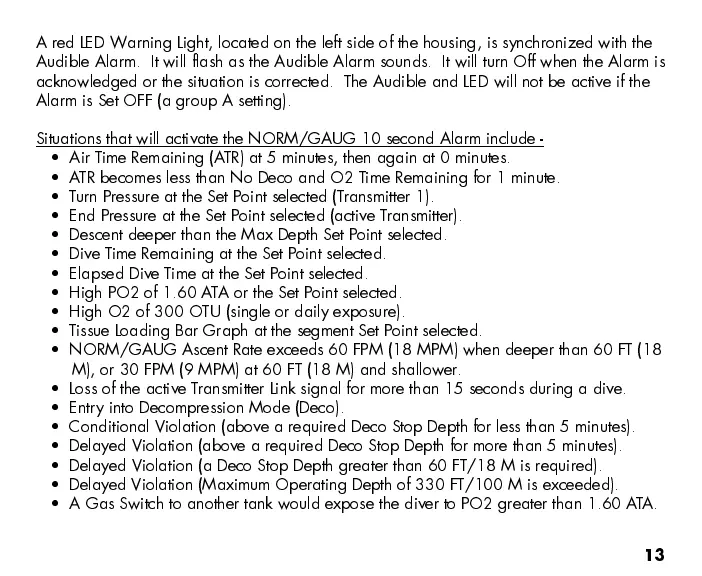

A red LED Warning Light, located on the left side of the housing, is synchronized with the
Audible Alarm. It will flash as the Audible Alarm sounds. It will turn Off when the Alarm is
acknowledged or the situation is corrected. The Audible and LED will not be active if the
Alarm is Set OFF (a group A setting).
Situations that will activate the NORM/GAUG 10 second Alarm include -
Air T ime Remaining (ATR) at 5 minutes, then again at 0 minutes.
ATR becomes less than No Deco and O2 Time Remaining for 1 minute.
Turn Pressure at the Set Point selected (T ransmitter 1).
End Pressure at the Set Point selected (active T ransmitter).
Descent deeper than the Max Depth Set Point selected.
Dive T ime Remaining at the Set Point selected.
Elapsed Dive Time at the Set Point selected.
High PO2 of 1.60 ATA or the Set Point selected.
High O2 of 300 OTU (single or daily exposure).
T issue Loading Bar Graph at the segment Set Point selected.
NORM/GAUG Ascent Rate exceeds 60 FPM (18 MPM) when deeper than 60 FT (18
M), or 30 FPM (9 MPM) at 60 FT (18 M) and shallower.
Loss of the active T ransmitter Link signal for more than 15 seconds during a dive.
Entry into Decompression Mode (Deco).
Conditional Violation (above a required Deco Stop Depth for less than 5 minutes).
Delayed Violation (above a required Deco Stop Depth for more than 5 minutes).
Delayed Violation (a Deco Stop Depth greater than 60 FT/18 M is required).
Delayed Violation (Maximum Operating Depth of 330 FT/100 M is exceeded).
A Gas Switch to another tank would expose the diver to PO2 greater than 1.60 ATA.
