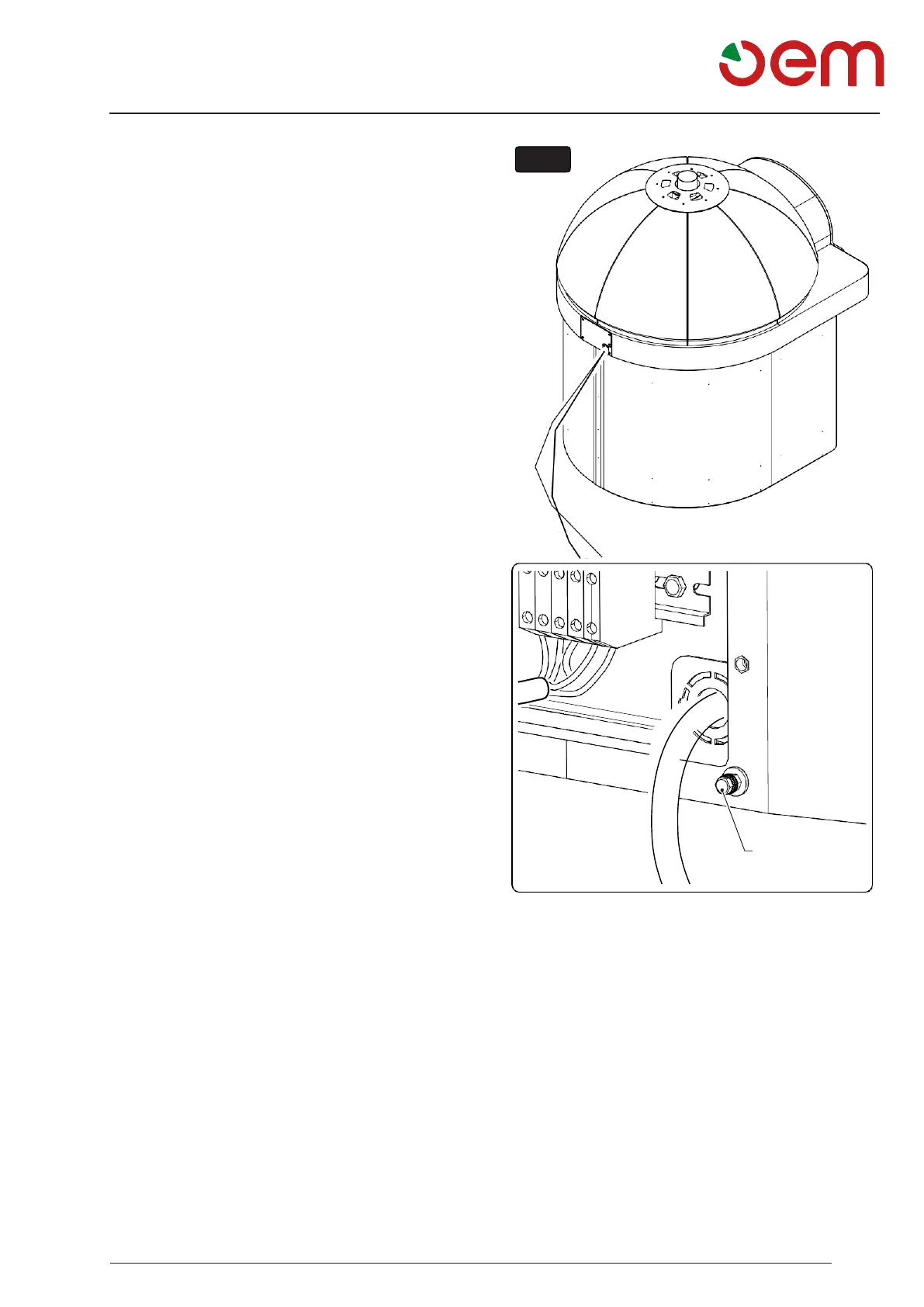

3.3.a - Electrically connecting the oven (Fig. 11)
• Remove the cover (1) by undoing the screws (2).
• Run the power cable through the cable duct (3) and
connect it to the terminal board (4).
• Connect the phases to terminals L1, L2 and L3, the
neutral to terminal N and the earth to terminal T.
• Refit the cover (1).
3.3.b - Equipotential connection (Fig. 12)
The oven must be inserted in an equipotential system
whose efficiency must be checked according to the
regulations in force.
• The connection must be made in cascade between
the various oven components using the screw (1).
