OEM DOME - Oven Positioning; The Customer; Chimney Assembly

EN - 19
DOME
Installation and connections

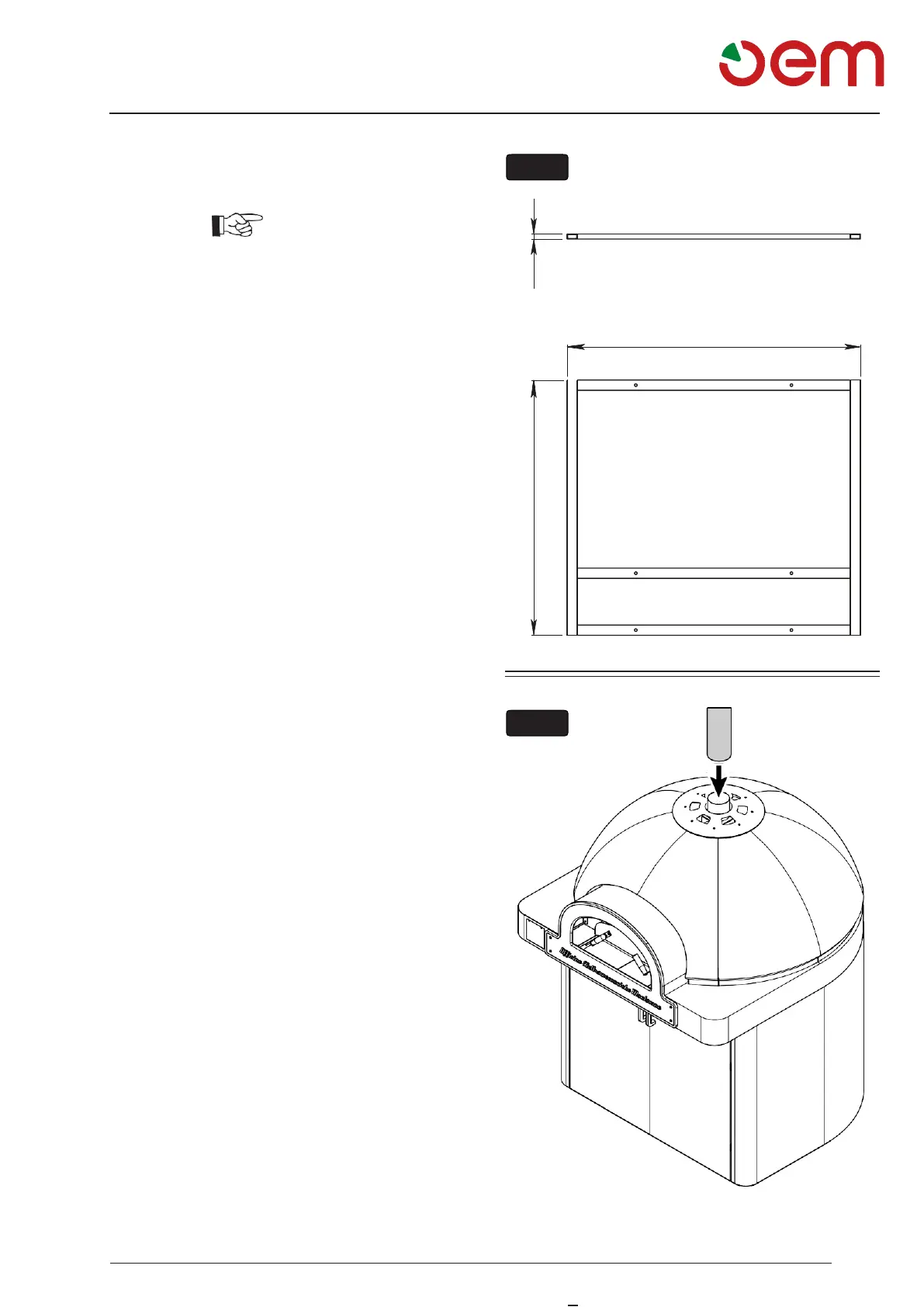

3.6 - OVEN POSITIONING ON THE STAND OF
THE CUSTOMER (Fig. 14)
IMPORTANT
• If the oven has to be placed on a customer’s stand,
the stand must be suitably dimensioned to the oven
weight and not be of flammable material.
• The stand shall be in a shape as shown in the figure
and shall ensure a correct ventilation of the intake
vents at the bottom of the oven.
• The stand can also be ordered.
3.7 - CHIMNEY ASSEMBLY (Fig. 15)
• Connect the chimney (1) to a flue though a tube (2)
with a diameter of 120 mm
1150
FIG. 15
FIG. 14
20
1000
