Oki MC873dn - Page 174

45850101TH Rev.1
4-24
Oki Data CONFIDENTIAL
4. REPLACEMENT OF PARTS

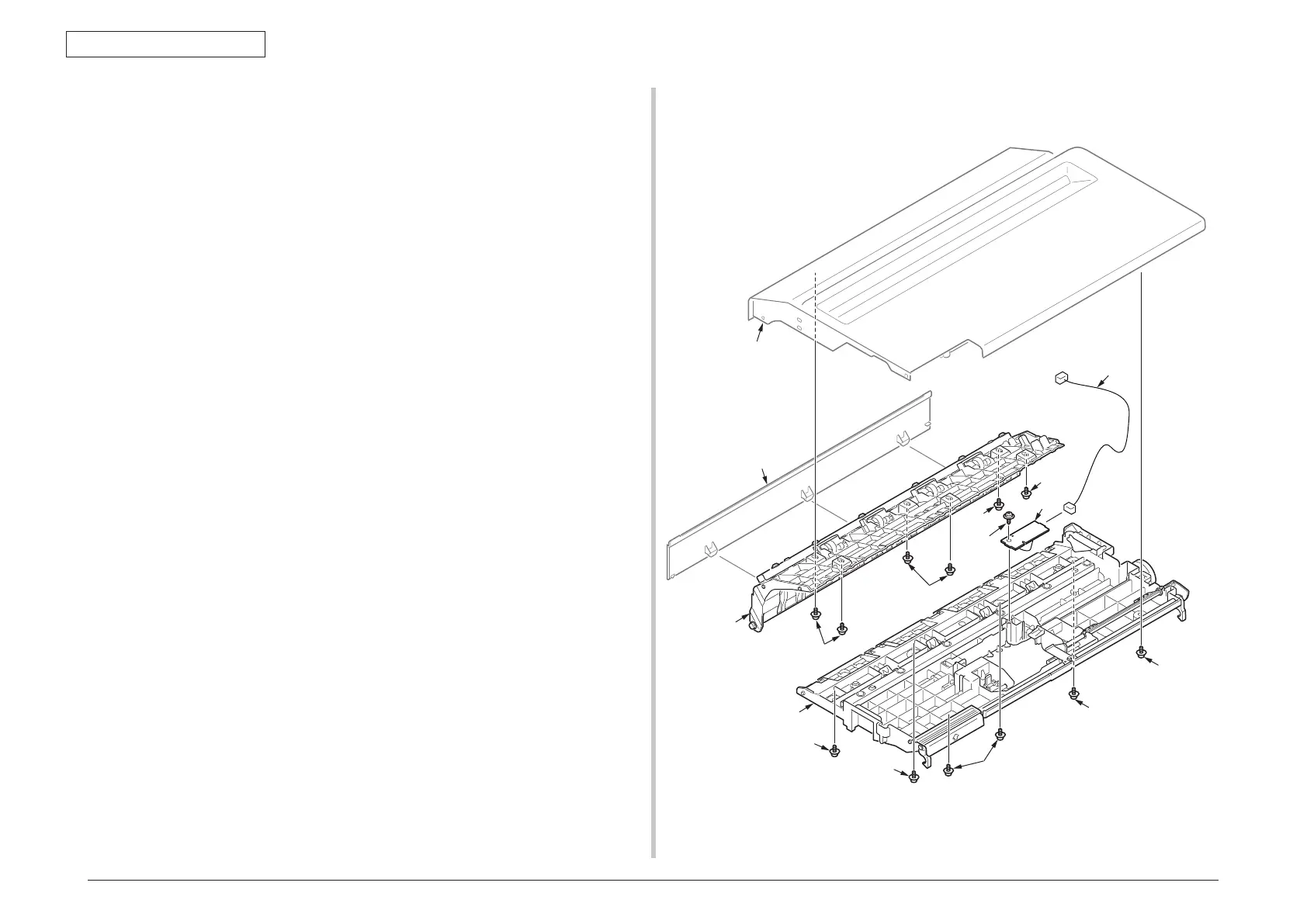

4.2.10.10 Guide Assy.-Top / Board Assy.-6JC
(1) Remove Cover-Assy-Top-ADF (See 4.2.10.8).
(2) Remove the six screws (black)
①
, and remove Guide Assy.-Top(B)
②
and Cover-
Top(ADF-Sub) from Cover-Top(ADF) assembled to Cover-Assy-Top-ADF.
(3) Remove six screws (black)
③
and remove Guide Assy.-Top(A)
④
from Cover-
Top(ADF).
(4) Remove a screw (black)
⑤
to detach the Board Assy. -6JC
⑦
with cable
⑥
from
Guide Assy.-Top(A)
④
.
(5) Disconnect the cable
⑥
from the Board Assy.-6JC
⑦
.
⑦
①
①
①
⑤
①
②
④
③
③
③
③
⑥
③
Cover-Top(ADF)
Cover-Top(ADF-Sub)
