4. REPLACEMENT OF PARTS

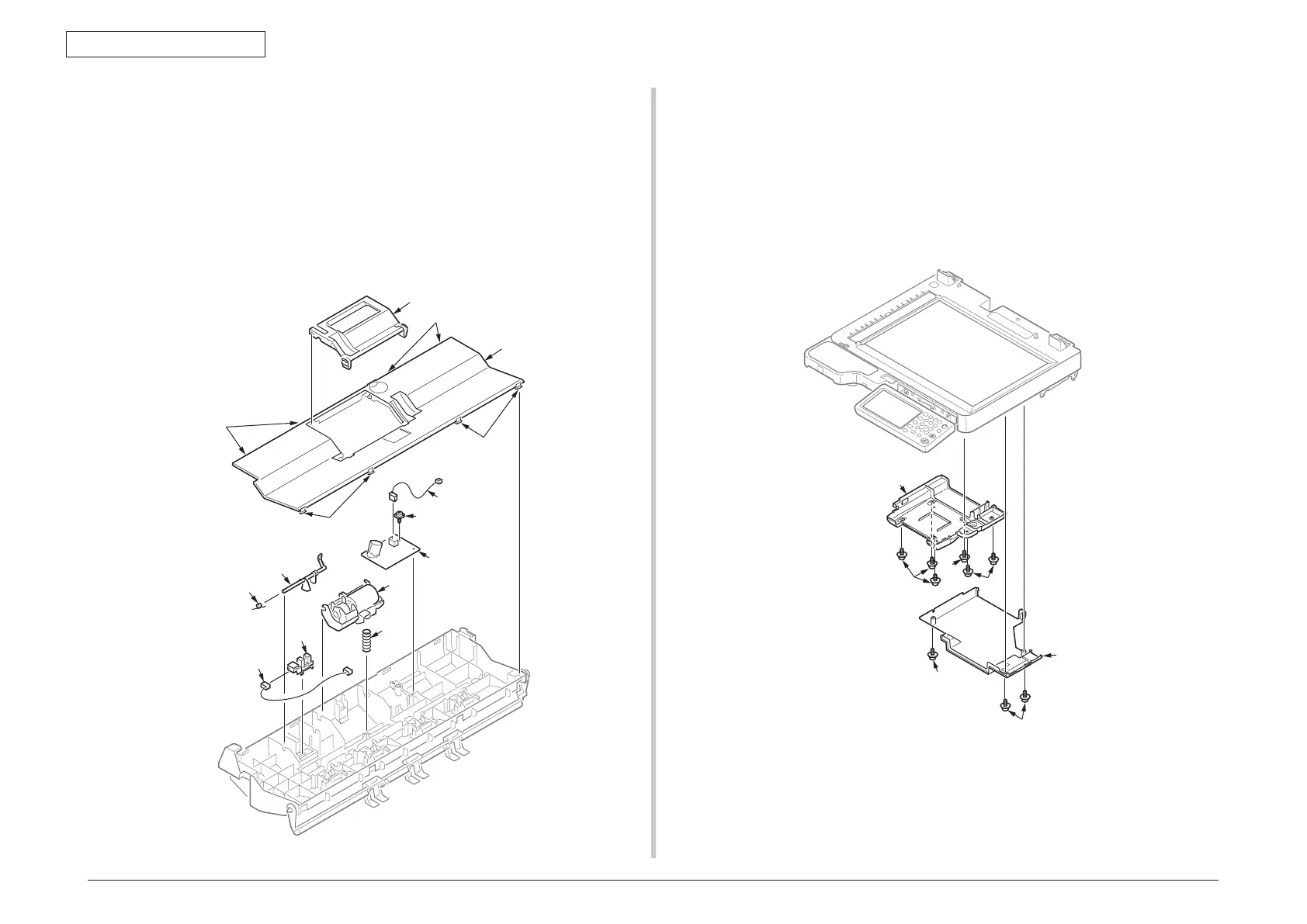

4.2.10.11 Guide-Assy-Retard
(1) Remove the eight claws and remove the Guide-Retard(sub)
①
.
(2) Remove the Cover-Retard(ADF)
②
.
(3) Remove the Frame-Assy Retard
③
and remove the spring Retard
④
.
(4) Remove the Lever-Hopping
⑤
and the spring-Hopping
⑥
.
(5) Remove the Photo-sensor
⑦
and remove the cable
⑧
.
(6) Remove a screw(black, No:42932708)
⑨
and remove the Board-6JD
⑩
and cable
⑪
.
②
③
④
⑤
⑥
⑦
⑧
⑨
⑩
①
⑪
Claw
Claw
Cl
aw
Claw
4.2.10.12 Flatbed-Unit
(1) Remove the three screws (black, No:42932708)
①
and remove the cover-
Bottom
②
.
(2) Remove the two screws (black, No:42932708)
③
and four screws (silver,
No:42920406)
④
and remove the Cover-Support(OP)
⑤
.
②
③
④
④
⑤
①
①
