45850101TH Rev.1
4-26
②
②
②
③
④
⑤
⑤
⑤
⑥
⑦
⑦
⑧
⑩
①
①
①
⑪
⑫
⑭×4
⑨×2
⑮×4
⑯
⑰
×2
⑱
㉑
⑳
Ⓐ
Ⓐ
Ⓑ
Ⓑ

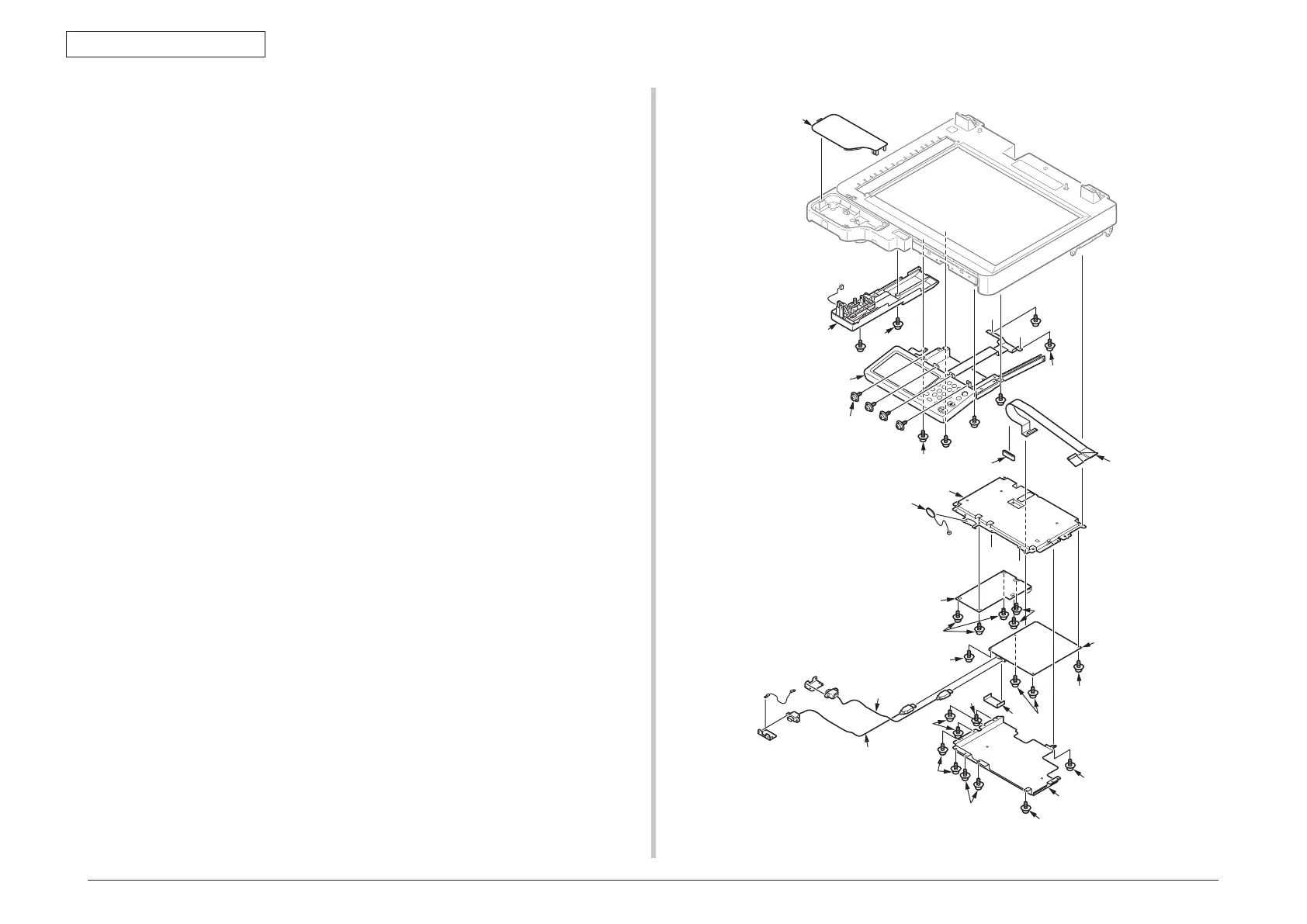

4.2.10.13 Frame-assy-FB
(1) Remove the four screws (black, No:42932708)
①
and remove the five screws (silver,
No:42920406)
②
, and remove the plate-shield(SU)
③
.
(2) Remove the all SU-board and FAX-board cables and FFC
④
.
(3) Remove the four screws (silver, No:42920406)
⑤
and remove the SU-board
⑥
.
(4) Remove the four screws (silver, No:42920406)
⑦
and remove the FAX-board
⑧
.
(5) Remove the two screws (black, No:42932708)
⑨
and remove the Plate-board(SU)
⑩
and remove the speaker
⑪
.
(6) Pull core
⑫
out of FFC cable
⑬
.
(7) Remove the four screws (silver, No:42920408)
⑭
and remove the four screws (black,
No:42932708)
⑮
and remove the OP-panel-Assy
⑯
.
(8) Remove the two screws (black)
⑰
and Cover-side-LF
⑱
.
(9) Remove the Cover-IC-card
⑲
.
(10) Remove the cable
⑳
and
.
To Next Page
