45850101TH Rev.1
4-28

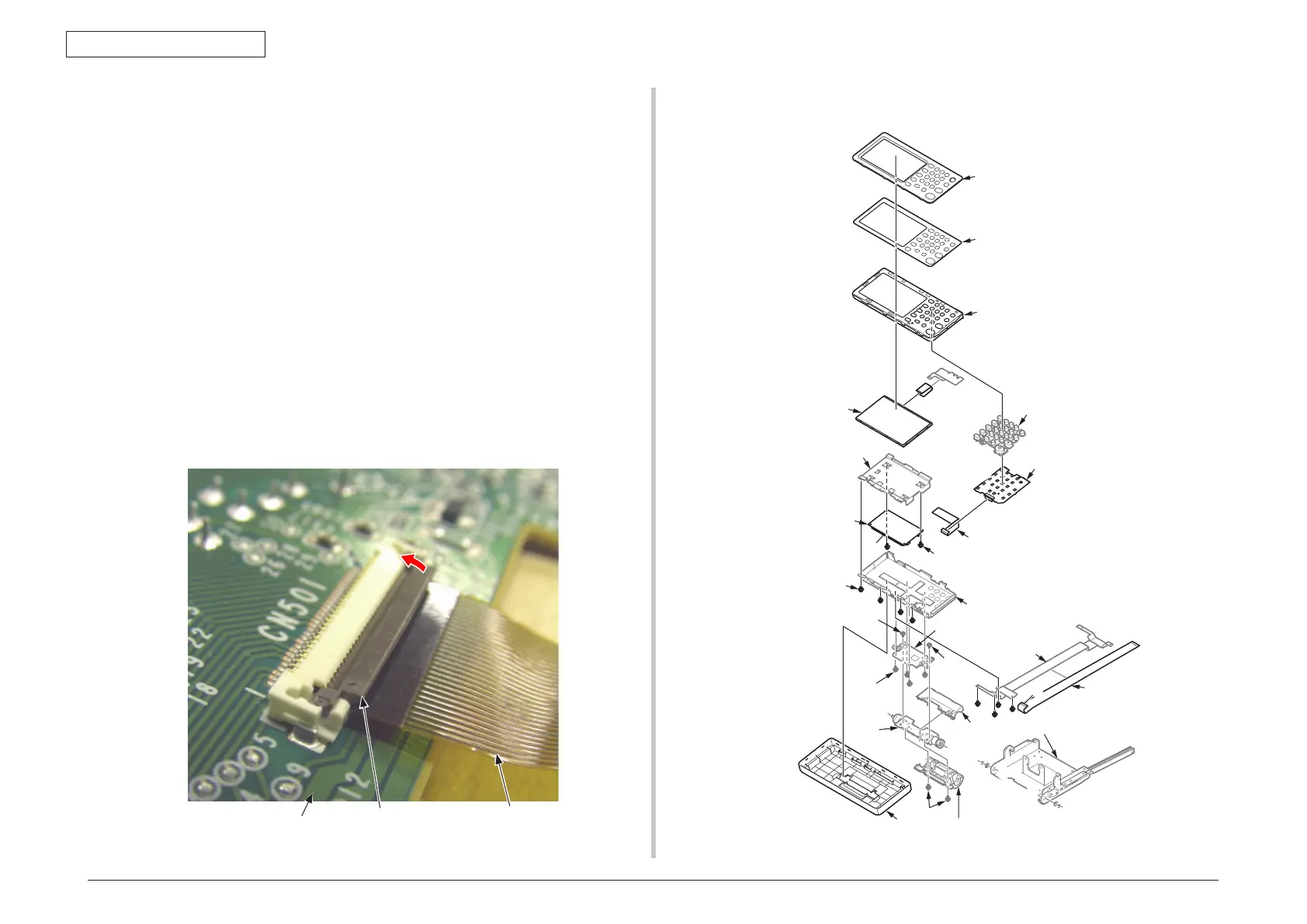

4.2.11 Frame-Assy.-OP
(1) Unlatch four claws to remove the Cover-Top-Base
①.
(2) Remove the four screws
②
and rotate
to remove the Plate-Base
③
with
the Plate-Support and the Cover-Bottom-Base.
(3) Remove eight claws to remove the Cover-Sheet
④
and remove the Sheet-
OP
⑤.
(4) Remove the ten claws and remove the Cover-Bottom
⑥
.
(5) Remove the four screws
⑦
and the four screws
⑧
to detach the Cover-
Top
⑨
, Plate-Shield(OP) and Plate-Hinge.
(6) Remove the Button-Assy
⑩
and Board
⑪
and remove the FFC Cable
⑫
.
(7) Remove the two screws
⑬
and remove the board
⑭
.
(8) Remove the LCD-Cable
⑮
while 'Portion A' is raised in the direction of
arrow and remove the Film
⑯
.
(9) Remove the LCD-Assy
⑰
.
Ⓑ
Ⓑ
Ⓐ
Ⓐ
Ⓒ
Ⓒ
Cover-Bottom-Base
Plate-Hinge
Plate-Shield(OP)
Plate-Support
③
②
⑧
x4
②
②
①
④
⑤
⑨
⑦x4
⑰
⑭
⑮
⑯
⑩
⑪
⑫
⑬
x2
Portion A
LCD cable
⑮
LCD-Assy
⑰
<Method of removing LCD cable>
To Next Page
