SECTION 8 LATHE AUTO-PROGRAMMING FUNCTION (LAP)

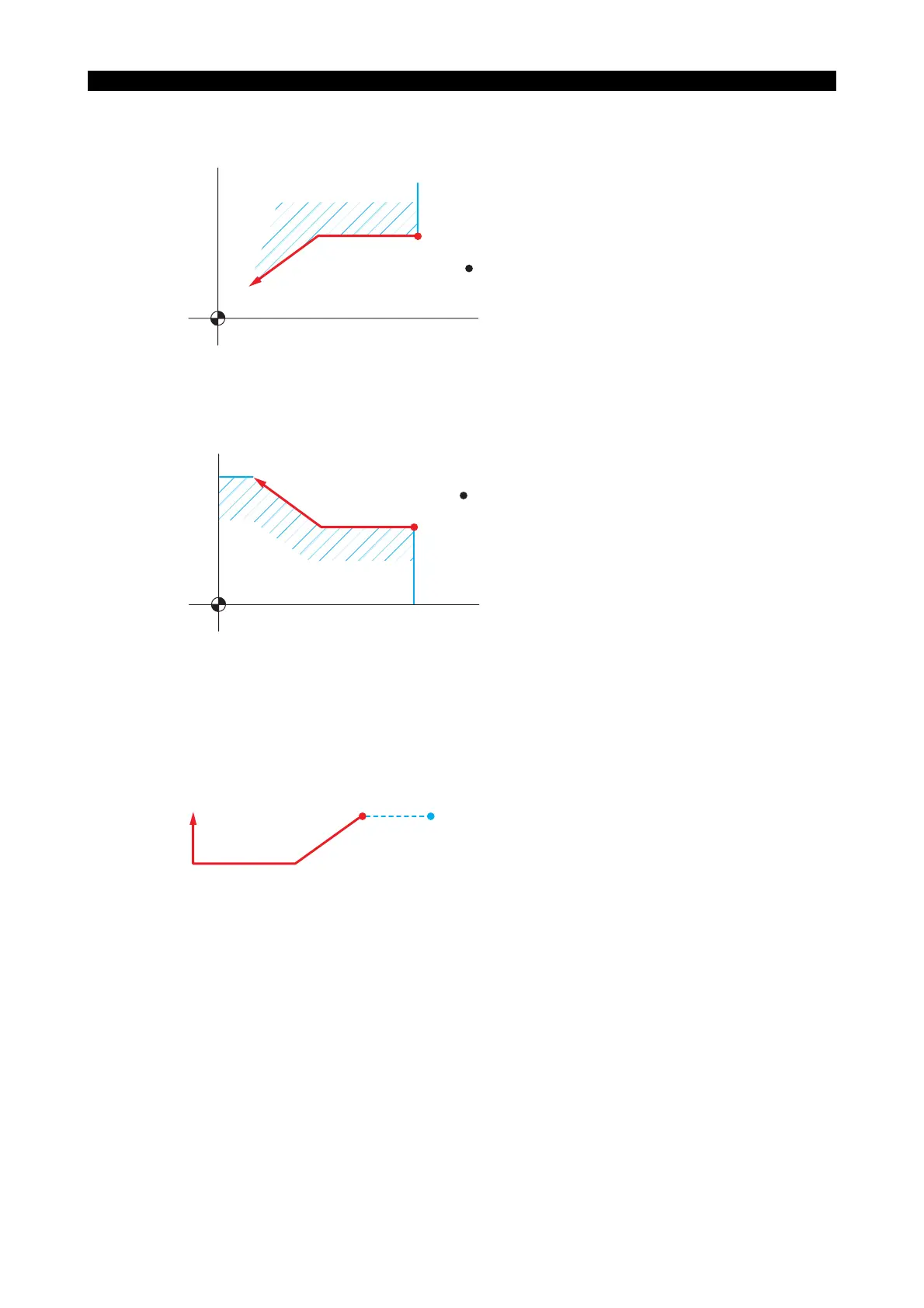

For ID cutting: Zs > Za, Xs < Xa
LE33013R0301000310006
For OD cutting: Zs > Za, Xs > Xa
LE33013R0301000310007
Bear the above relationships in mind when designating the AP starting point and the cutting
start point.
Example:
LE33013R0301000310008
When the cutting start point and the AP starting point are designated as illustrated above
(where Xs = Xa), a cycle operation error will occur.
(Za, Xa)
(Zs, Xs)
(Za, Xa)
(Zs, Xs)
AP starting point (Zs, Xs)
Cutting start point (Za, Xa)
