SECTION 8 LATHE AUTO-PROGRAMMING FUNCTION (LAP)
(2) Copy turning in descending slope
In the AP Mode II, the diameter must be largest at the end point of the contour definition portion
(must be smallest in ID turning). Otherwise, the cutting tool interferes with the workpiece.
From AP Mode V to AP Mode II
LE33013R0301000310005
The relationship between the AP starting point (Zs, Xs) and the cutting start point (Za, Xa) must
satisfy the following conditions.

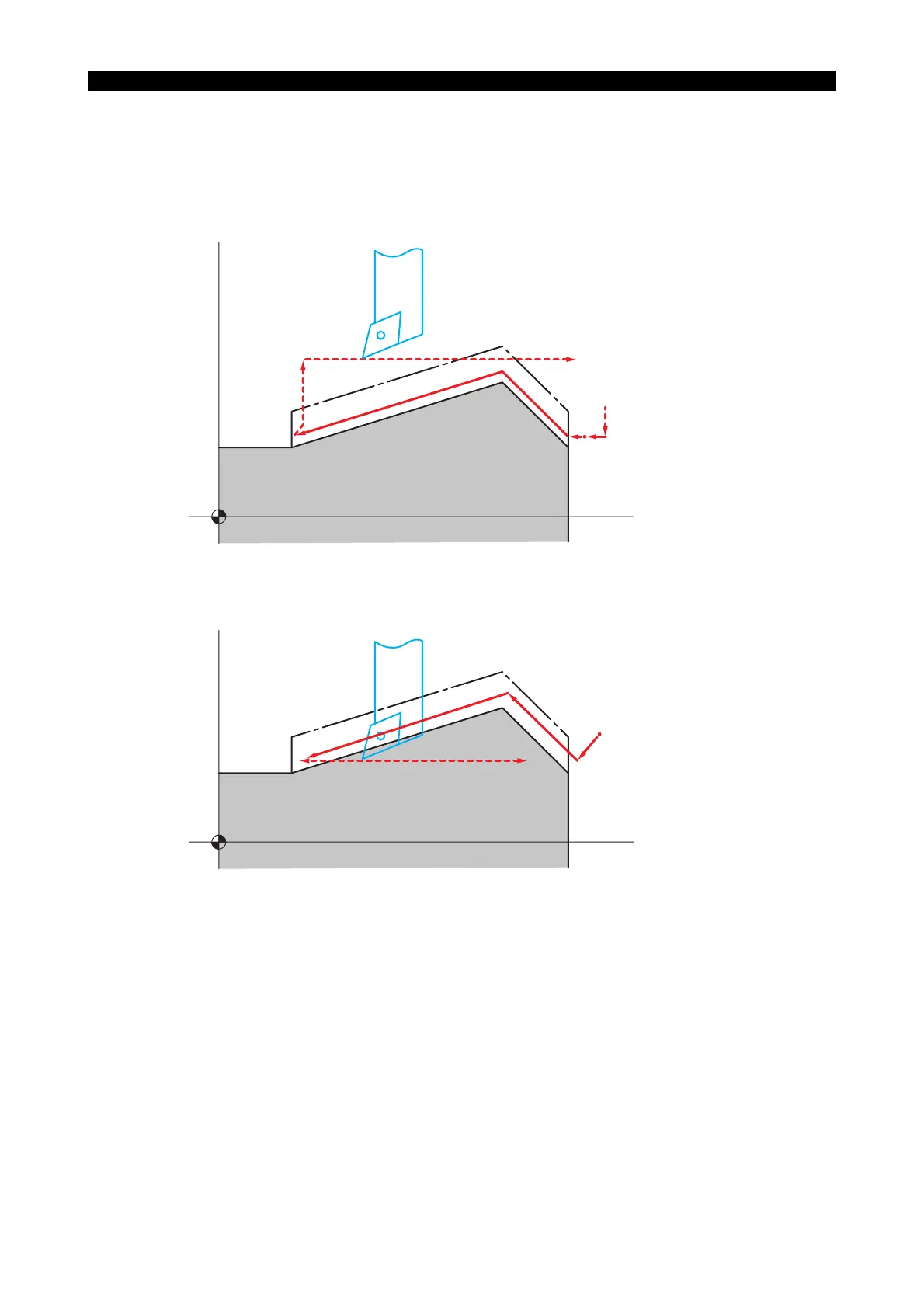

In AP Mode V
In AP Mode II
