5238-E P-311
SECTION 12 USER TASK
[Supplement]
[Supplement]

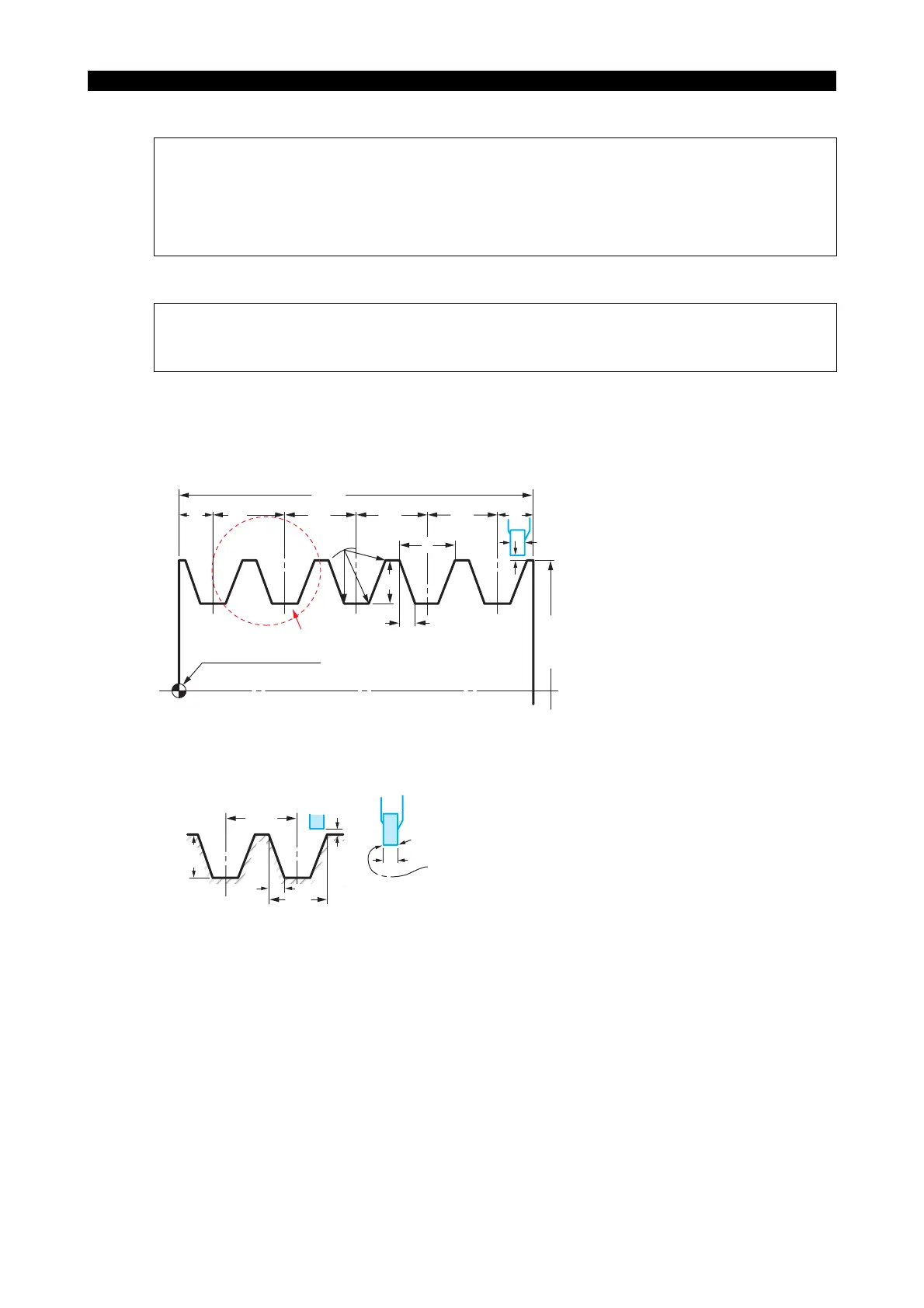

Program Example 3 (Cutting a contour consisting of a repetitive contour)
This is an example of programming for a part that has repetitions of the same contour, such as a
pulley.
LE33013R0301400490012
• Variables are set in block N1000.
• The Z coordinate of point "a" is commanded in block N1001.
• The X and Z coordinates of point "b" and arc radius are commanded in block N1002.
• The X and Z coordinates of point "c" are commanded in block N1003.
• RTS in block N1004 indicates the end of the subprogram.
The subprogram ORT01 is called for by the command in block N109 to define the contour
consisting of a circular arc and taper. The variables used for defining this contour are all set in this
block.
104
12 20 20 20 1220
16
1R
4.7
A
15
Z
150
[Fig. 3-1]
[Fig. 3-2]
Programming zero
PC11
ZW2
ZW1
TW1
XM1
XD1
T030303
T030313
Tool offset applies at this point
