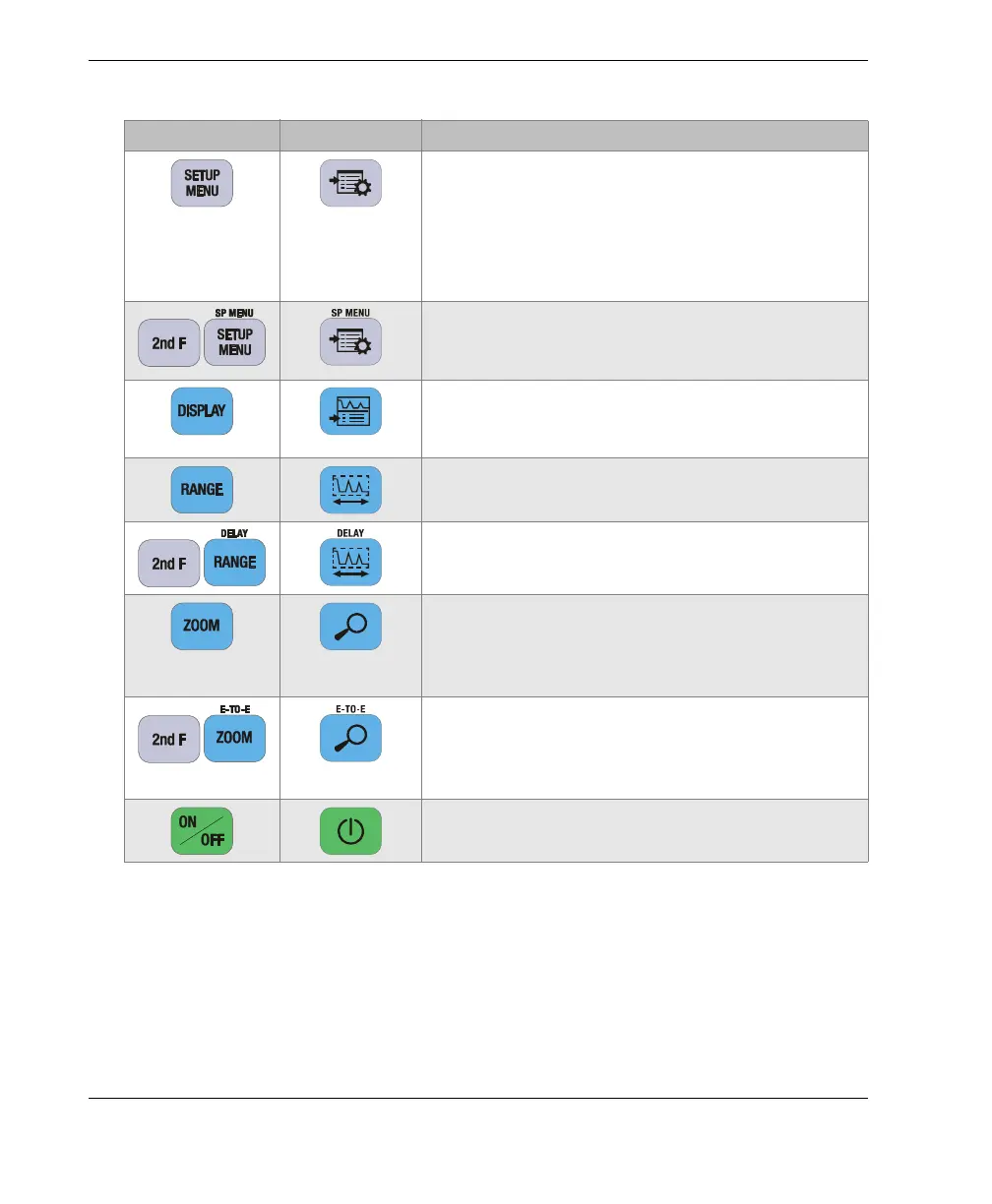

Setup menu — Provides access to instrument
parameters (measurement, system, alarm,
differential mode, communication, B-scan, DB
grid, avg/min, temperature correction, multilayer
[optional], oxide [optional], password set,
instrument lock).
Special menu — Provides access to special gage
parameters (clock, language, options, resets, tests,
software diagnostics, instrument status).
Display — Provides access to display parameters
(color scheme, brightness, waveform rectification,
waveform trace, and VGA output).
Range — Changes the waveform display range to
the next available value.
Delay — Allows editing the value for the
beginning of the waveform display.
Zoom — Dynamically changes the waveform
display range so that the region immediately
surrounding the measured echo is shown at
maximum magnification.
Echo-to-Echo — With dual element transducers,
opens a menu to select the measurement mode
(standard, auto echo-to-echo, or manual echo-to-
echo).
On/Off — Turns the instrument power on or off.
Table 2 Keypad functions (continued)
English International Functions
