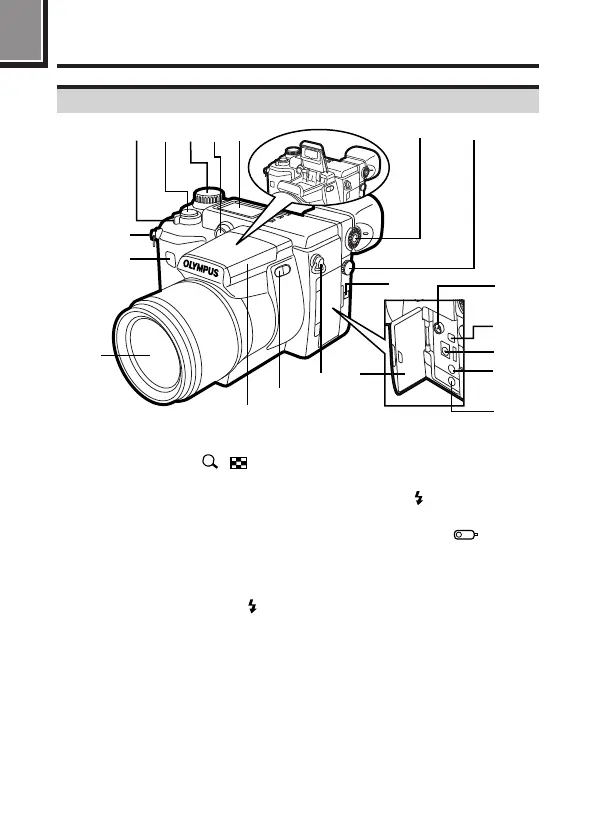

Names of parts
Camera
1
9
8
0
!
#
@
9
%
^
&
*
(
$
2 3 4 5
6 7
1 Zoom lever (T/W) (P. 71)/
Index-display lever ( / )
(P. 125)
2 Shutter button (P. 67)
3 Mode dial (P. 44)
4 Self-timer lamp/AF assist lamp
(P. 68/119/121/157)
5 Control panel (P. 27)
6 Diopter adjustment dial (P. 64)
7 5-pin external flash socket ( )
(P. 112)
8 Microphone (P. 123)
9 Strap eyelet (P. 32)
0 Remote control receiver (P. 121)
! Lens
@ Flash (built-in) (P. 72/106–116)
# Flash switch ( ) (P. 72/108/113)
$ Connector cover (P. 76/123/187)
% Remote cable jack ( )
(P. 182–187)
^ USB connector (P. 182–187)
& DC-IN jack (P. 37)
* External microphone jack (MIC)
(P. 123)
( A/V OUT jack (MONO) (P. 76)
