② Checking shelf size
10

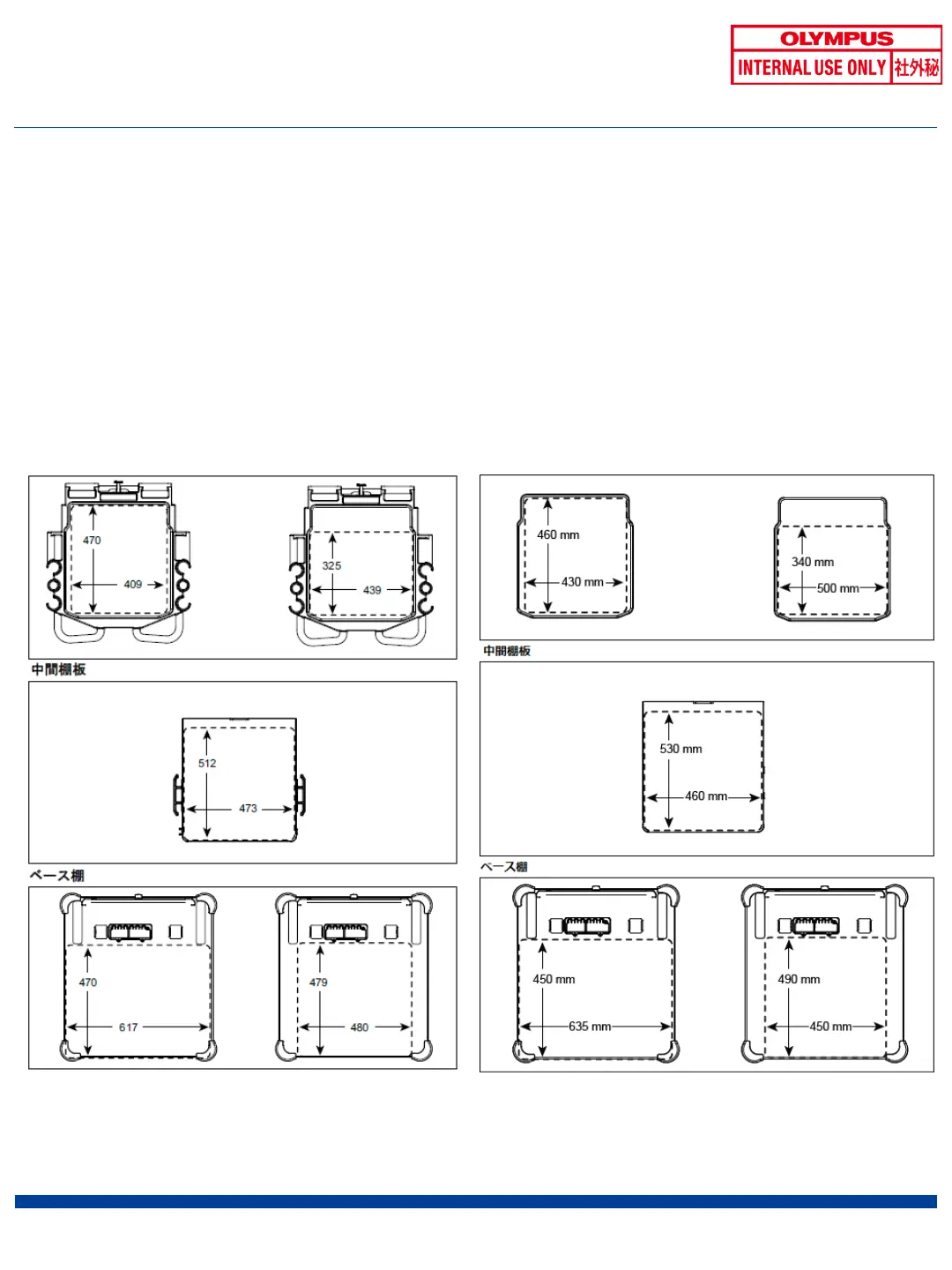

Device which exceeds the size of the shelf plate cannot be mounted.
Top tray
Top tray
WM-NP2 WM-NP3
3. Precautions for installation
<Supplementary Info>
When CV-1500 on the mid shelf is placed on the pattern, the collar of the connector
protrudes from the front end of the mid shelf. However, it is OK since it does not protrude
from the base shelf.
Mid shelf
Base shelf
Base shelf
Mid shelf
