Olympus EVIS X1 - Checking Shelf Height

① Checking shelf height
9
Before installation, change the height of the shelf plate as needed.

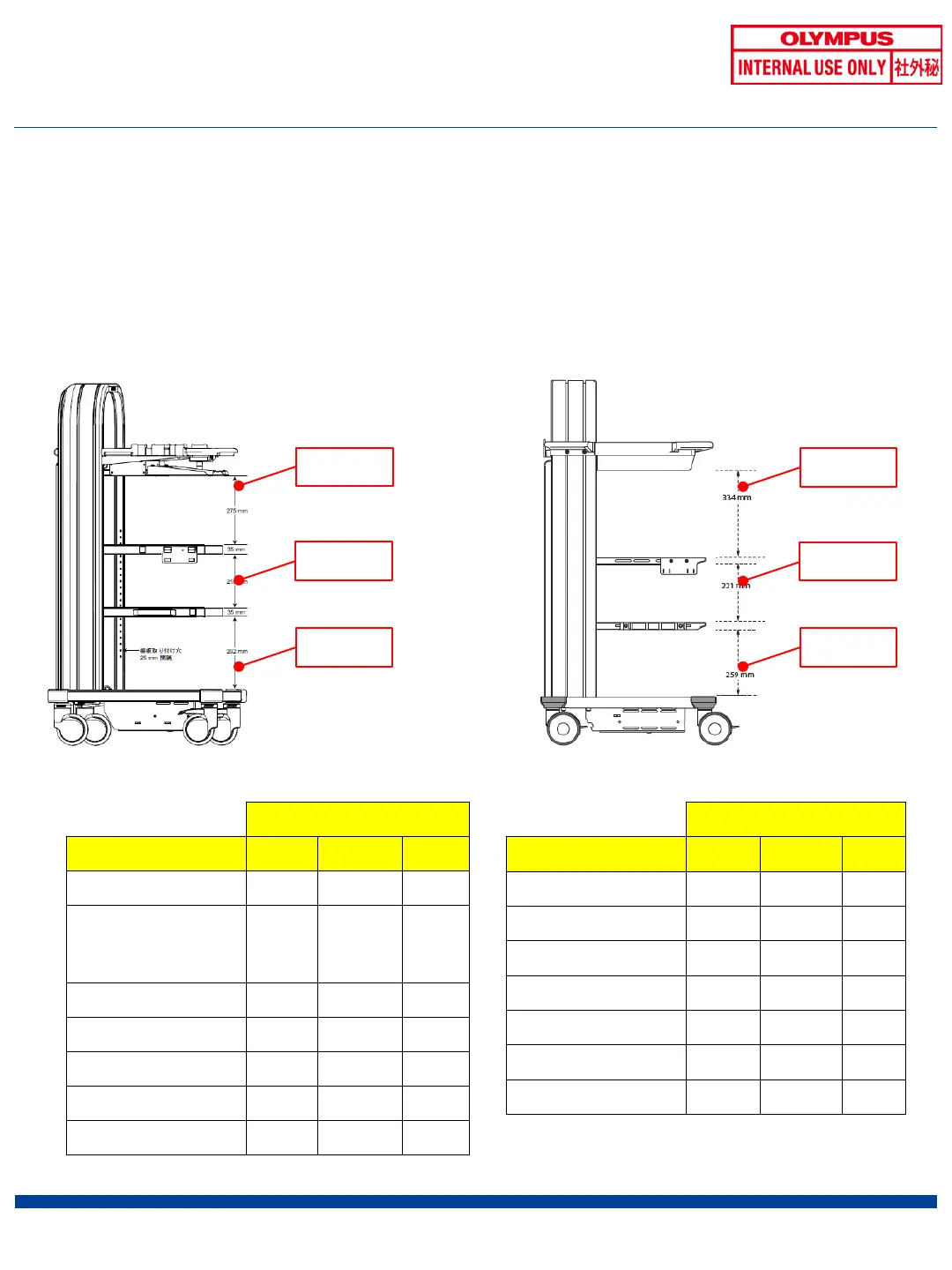

Original shelf positions at delivery are as follows:
Installed on WM-NP2 Installed on WM-NP3
275mm
215mm
292mm
334mm
221mm
259mm
Maximum size [mm]
Product name
Width
Height
Depth
CV-1500
398
218
580
CV-190
CV-190PLUS
CV-290
382
91
489
EU-ME1
430
185
500
EU-ME2
445
184
495
IMH-10
370
108.5
413
IMH-20
370
167.5
413
IMH-200
370
150
390
Maximum size [mm]
Product name
Width
Height
Depth
nCare
371
87
340
OEP-4
280
125
398
OEP-5
280
125
398
OEP-6
280
125
415
OFP-2
244
220
385
UPD-3
370
81
482
PSCU
375
75
477
[Reference] Maximum dimension of each product
*If CV1500 and CV-190/190PLUS/290 are placed on WM-NP2, position of the shelf plate needs to be changed.
3. Precautions for installation
