Olympus EVIS X1 - Page 34

34

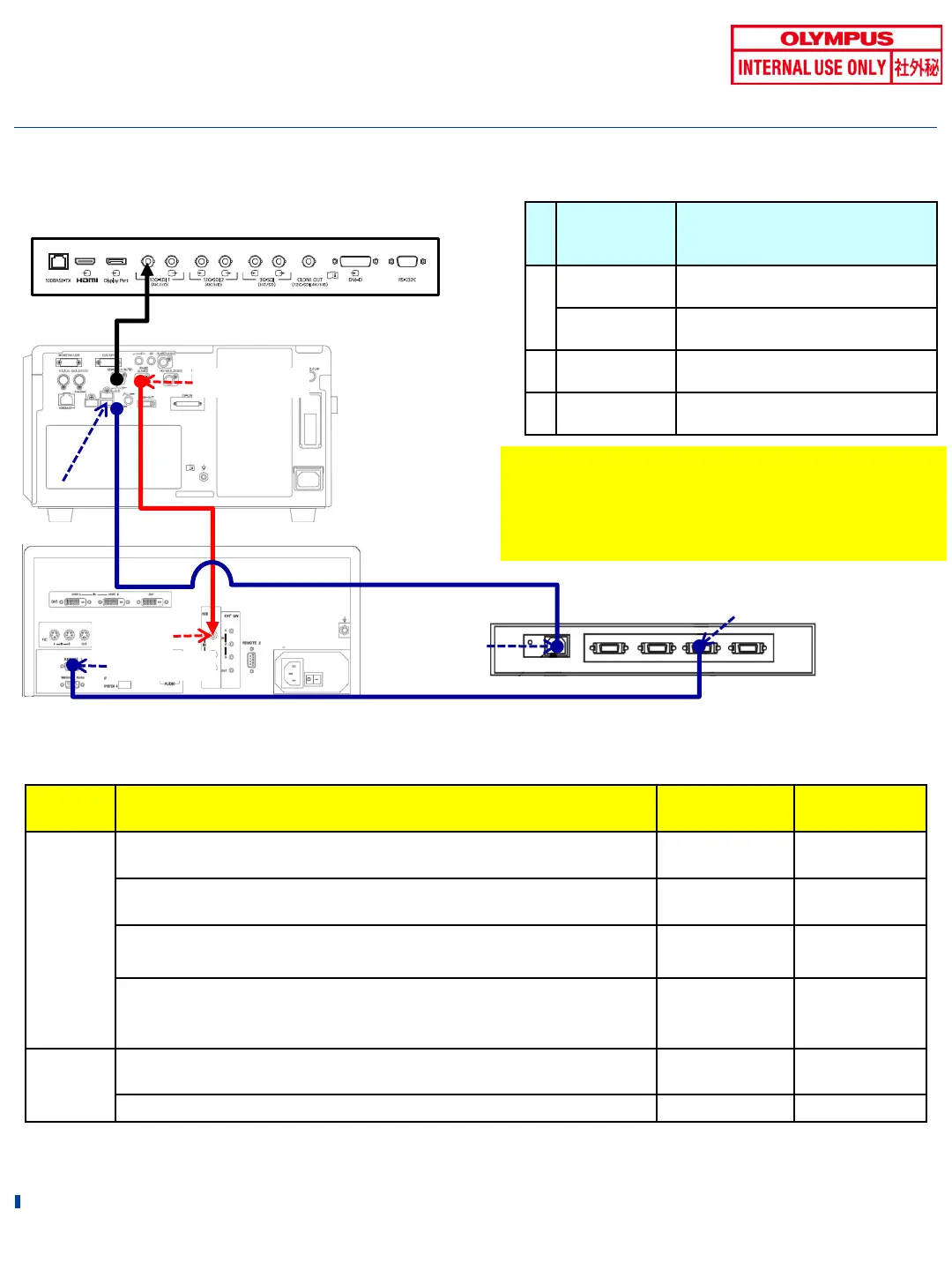

◆ IMH-20(MAJ-1916)
♯
Product
symbol
Name
1
MAJ-1951 SDI cable (2.5M)
MAJ-1912 SDI cable (8.5M)
2 MAJ-1918 Remote cable
3 MAJ-1021 Remote cable
<List of Cables>
Setting
model
Step Default After change
CV-1500
Setting > System setup > Video output > 3G-SDI OUT
(HD/SD) signal
HD:1080p HD:1080i
Setting> System setup > Peripherals 1>CV interface
converter type
Not connected MAJ-1916
Setting > System setup > Peripherals 1 > Video recorder type Not connected
IMH-10/
IMH-20
Setting> User Setting > Release/Pre-freeze
>Release 1 save location or Release 2 save location
Portable
memory
Portable
memory
Video recorder
IMH-20
System settings> Function settings > Device >Remote 2 No Device
Processor type
1
User settings > Select input - SDI
! Caution!
Since IMH-20 is not compatible with 4K and
HD:1080p, set CV-1500 output to HD:1080i
or less.
■ Precautions
・ Set in the order of "CV Communication Device Connecting Model" to "Video Recorder
Connecting Model". In the opposite order of setting
When it is performed, the video recorder type will be not connected.
・ Turn on the IMH Remote Lock.
OEV321UH
CV-1500
IMH-20
1
*
2
Adaptor
3G-SDI output
CV
SDI A IN
DVR
REMOTE 1
3
MAJ-1916
MAJ-2363 can be used instead of MAJ-1916.
For the wiring and setting for MAJ-2363,
refer to "CV-290+IMH-20(MAJ-2363)".
* Refer to OEV321UH for the
connection and setting with
OEV321UH.
[SETTING INFORMATION]
