◆ IMH-10(MAJ-1916)
♯
Product
symbol
Name
1
MAJ-1951 SDI cable (2.5M)
MAJ-1912 SDI cable (8.5M)
2 MAJ-1918 Remote cable
3 MAJ-1021 Remote cable
<List of Cables>
Setting
model
Step Default After change
CV-1500
Setting > System setup > Video output > 3G-SDI OUT
(HD/SD) signal
HD:1080p HD:1080i
Setting> System setup > Peripherals 1>CV interface
converter type
Not connected MAJ-1916
Setting > System setup > Peripherals 1 > Video recorder type Not connected
IMH-10/
IMH-20
Setting> User Setting > Release/Pre-freeze
>Release 1 save location or Release 2 save location
Portable
memory
Portable
memory
Video recorder
IMH-10
System settings> Function settings > Device >Remote 2 No Device
Processor
Type 1
User settings > Select input - SDI
! Caution!
Since IMH-10 is not compatible with 4K and
HD:1080p, set CV-1500 output to HD:1080i
or less.
■ Precautions
・ Setting the CV communication device connecting model in the order of "Video recorder
connecting model". If setting is performed in the reverse order, the "video recorder connecting
model" will not be connected.
・ Turn on the IMH Remote Lock.

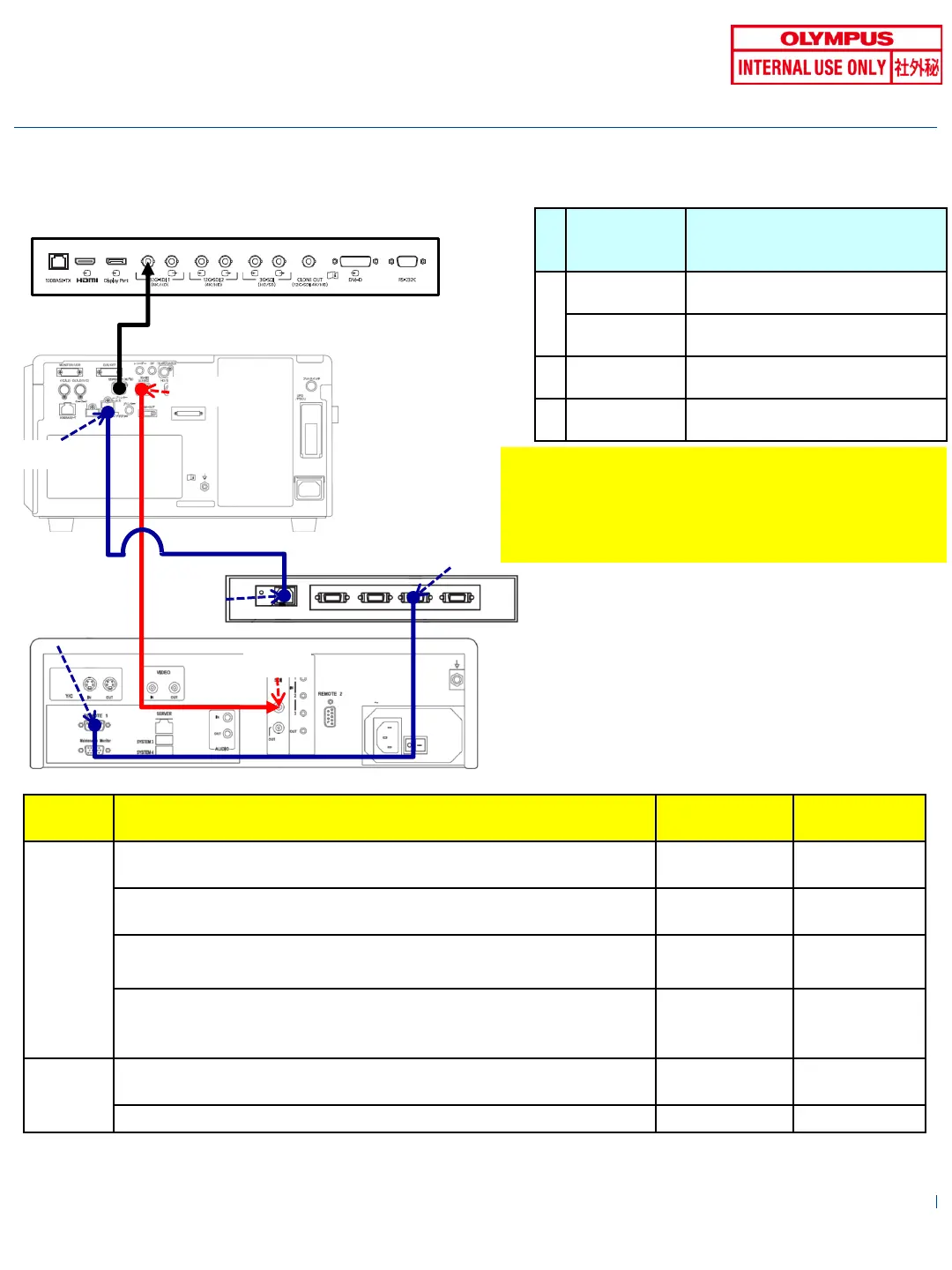

OEV321UH
CV-1500
IMH-10
1
*
2
Adaptor
3G-SDI output
CV
SDI IN
DVR
REMOTE
1
3
MAJ-1916
* Refer to OEV321UH for the
connection and setting with
OEV321UH.
MAJ-2363 can be used instead of MAJ-1916.
For the wiring and setting when using MAJ-
2363, refer to "CV-290+IMH-10(MAJ-2363)"
See.
[SETTING INFORMATION]
To Next Page
